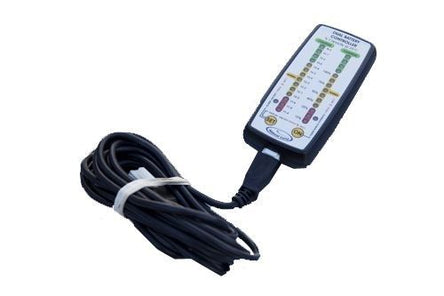

Designed for controlling two batteries in parallel or serial, the dual battery controller is used in conjunction with the National Luna solenoid.

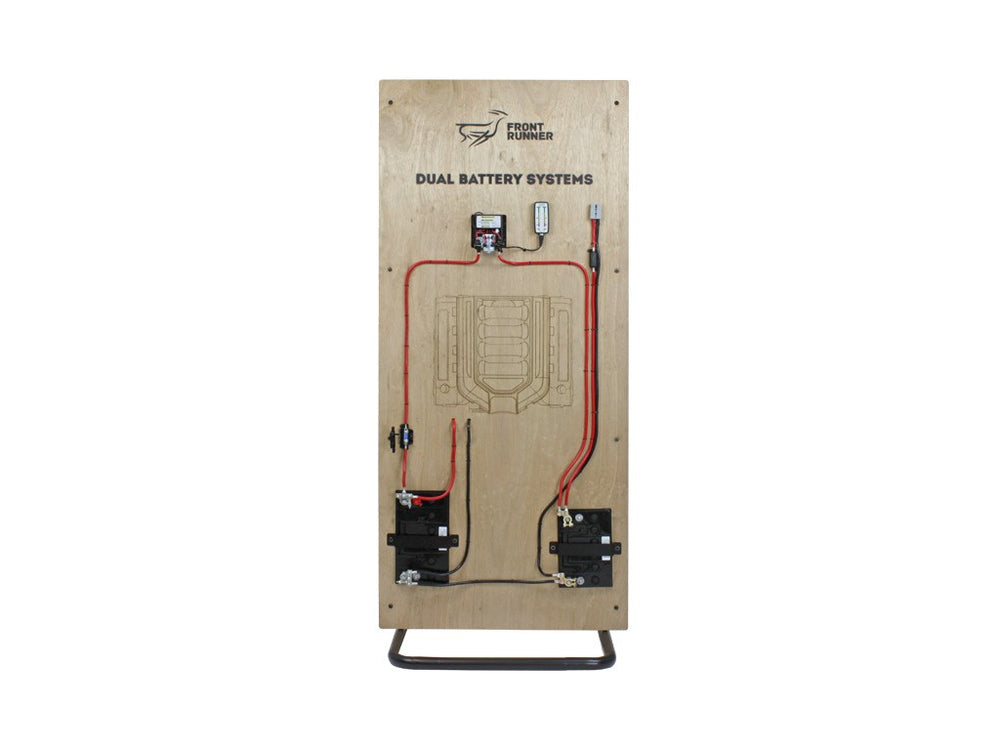

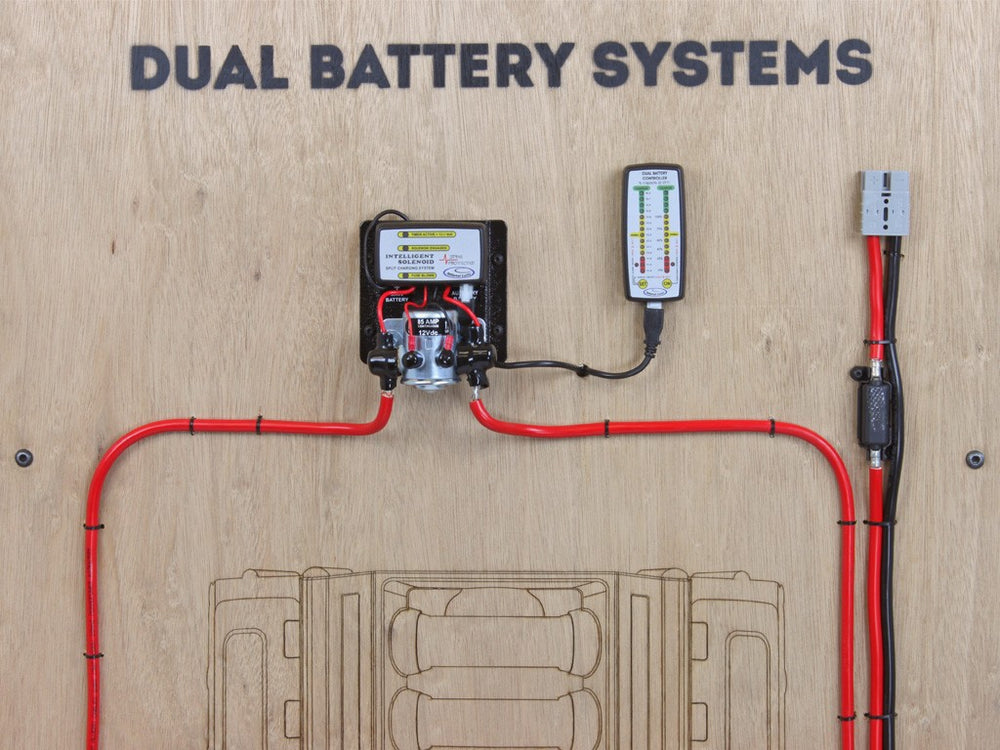

The Dual battery controller is specifically designed to be combined with the National Luna split-charge systems (Intelligent Solenoid or Portable Power Pack). This model allows the user to over-ride the split-charge system's built-in timer, useful for winching or start assistance when the main battery is too low.
-
Simple installation
-
2 individual battery displays
-
Excessive discharge warning
-
Over-charge warning
-
Polarity protected
-
Extremely low power consumption
-
11.4V to 15V operation (ideal for automotive use)
-
Programmed for non-linear lead-acid battery characteristics
-
Audible alarm as standard (can be muted)
-
Display on/off feature (Sleep mode)
-
Recessed version available for panel-mounting
- 3.5-metre cable (standard)
Product dimensions:
L 107mm (4.2") x W 48mm (1.9") x H 20mm (0.8")
Weight:
Dual controller: 0.19kg (0.42lbs) incl. cable
Power supply:
8Vdc - 15Vdc (display range: 11.4V - 14.2V)
Low-voltage warning:
DC voltage below 11.4V
Over-charge warning:
DC voltage above 14.65V
Cable:
Dual Controller - Removable 3.5 meter 4-core cable
Power consumption:
8mA (sleep mode-option) , 35mA Average , 40mA max
Special Notes
SKU; BMS-10301
