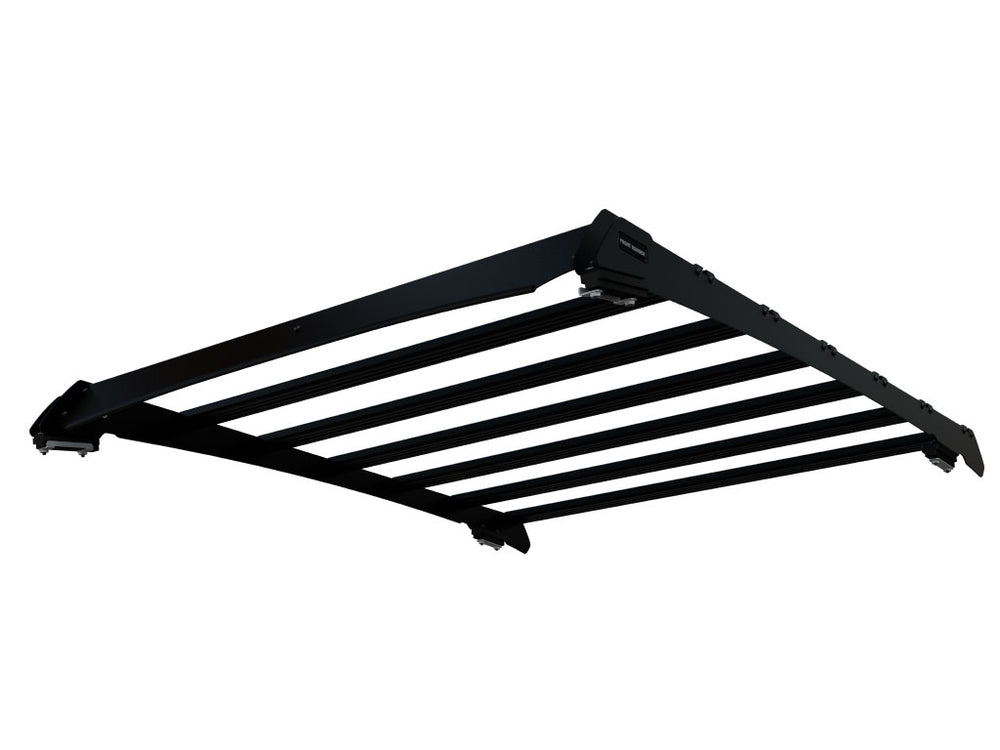

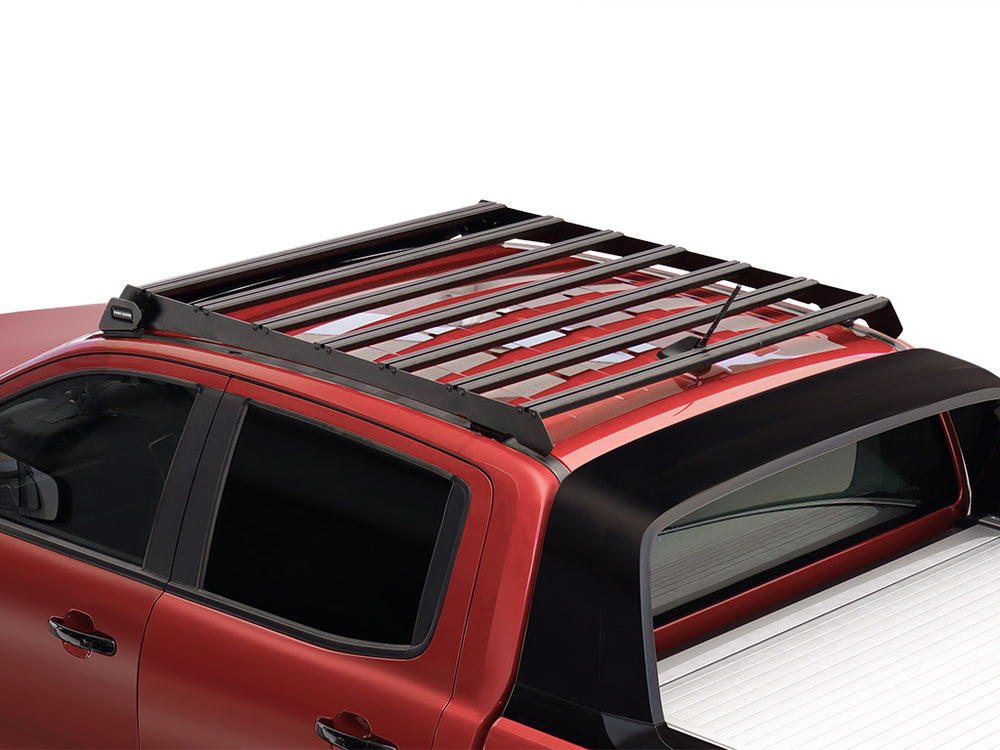

Front Runner | Ford Ranger T6 / Wildtrak / Raptor Slimsport Roof Rack Kit - KSFR004T
Sold out
$669.00
It’s never been easier to start your adventure with the Ford Ranger T6 / Wildtrak / Raptor Slimsport Roof Rack Kit. This low-profile rack lets you immediately enjoy the Great Outdoors with versatile accessories so you can build your own adventure and go! This Slimsport Roof Rack is ready to play.
- Compatible with the Ford Ranger T6 SuperCrew (2012-Current), Ranger Wildtrak SuperCrew (2014-Current) and Ranger Raptor SuperCrew (2019-Current).
- Low-profile flat deck Slimsport rack has a load carrying area of 1272mm (50") x 1150mm (45.27").

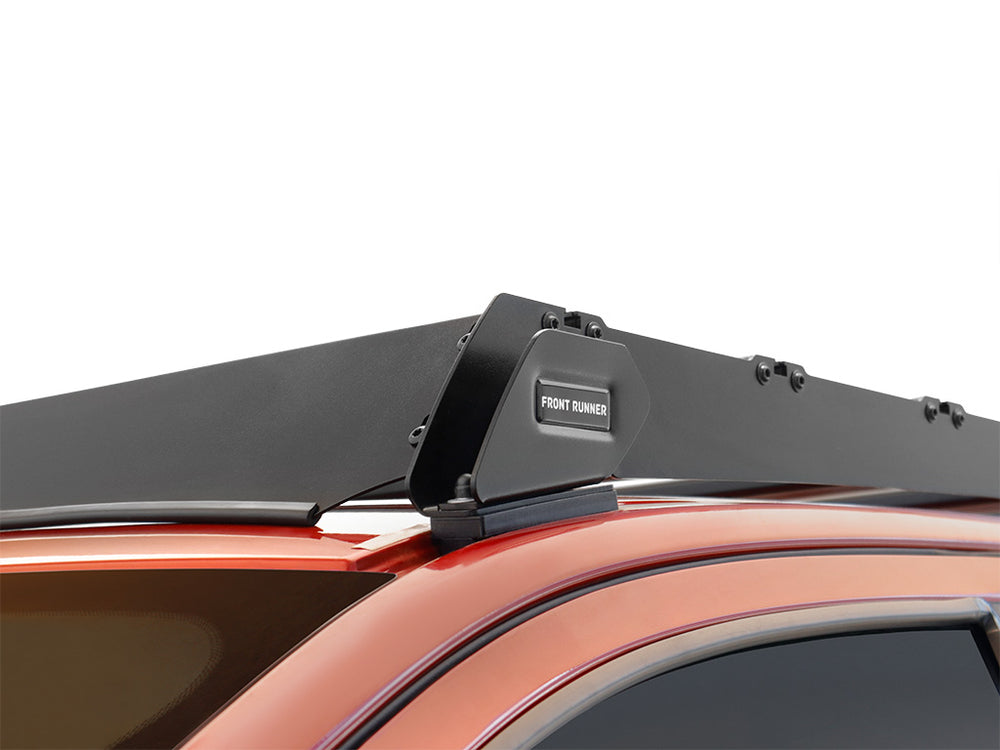

- Sleek side rails have integrated mounting feet.
- High-strength aluminum slats have top and bottom T-slots suitable for all Front Runner top mount accessories.
- Effortlessly access your Slimsport cargo with the Handle/Light Slimsport Rack Bracket (sold separately).
- Easily add on the Slimsport Side Mount Accessory Bracket / Small – by Front Runner for all Front Runner side mount accessories (sold separately).

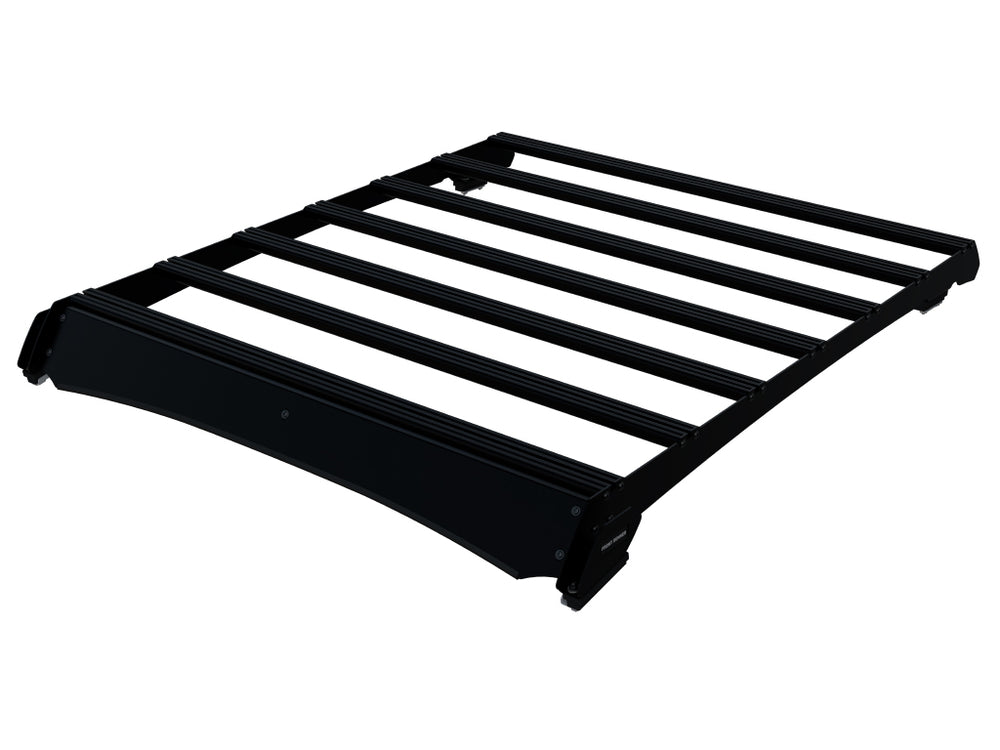

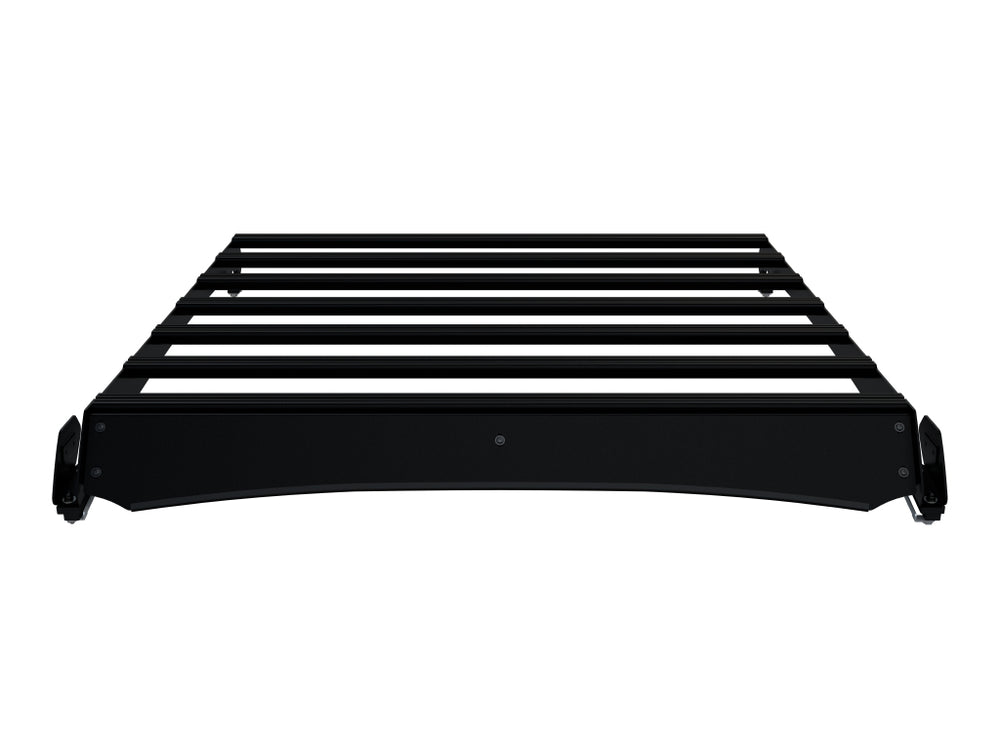

- Included standard full fairing with rubber edge trim makes the rack ultra-quiet.
- Need a lightbar? The optional Ford Ranger (2012-Current) Slimsport Rack 40" Light Bar Wind Fairing has a 40" cutout to allow use of 40" LED Slim Light Bar VX1000-CB / 12V/24V / Single Mount (both sold separately).
- Fitment guide and all mounting hardware included.
- 6"/T30 Torx Allen Key for Slimsport Rack is required for installation. (sold separately)
- Drilling required for fitment (all hardware included). NO DRILLING REQUIRED FOR WILDTRAK MODELS
- Note: Under Rack Tables and some side mount accessories such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets are not compatible with the Slimsport rack kit range.
Consisting of:
1 x Ford Ranger T6 / Wildtrak / Raptor Slimsport Roof Rack Kit
1 x RRAC230 - FORD RANGER SLIMSPORT RACK WIND FAIRING
Installation Hardware
Fitting Instructions
Material Used
Black epoxy powder - coated T6 aluminium
High strength steel
Assembled Rack Kit Dimensions:
1411mm (55.6") L x 1222mm (48.1") W x 147mm (5.8") H
Approximate Installed Weight: 24.52kg (54.06lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.
Shipping Dimensions:
Width: 325mm (13")
Length: 1700mm (67")
Height: 160mm (6")
Shipping Weight:
Weight: 24.52kg (54lbs)
