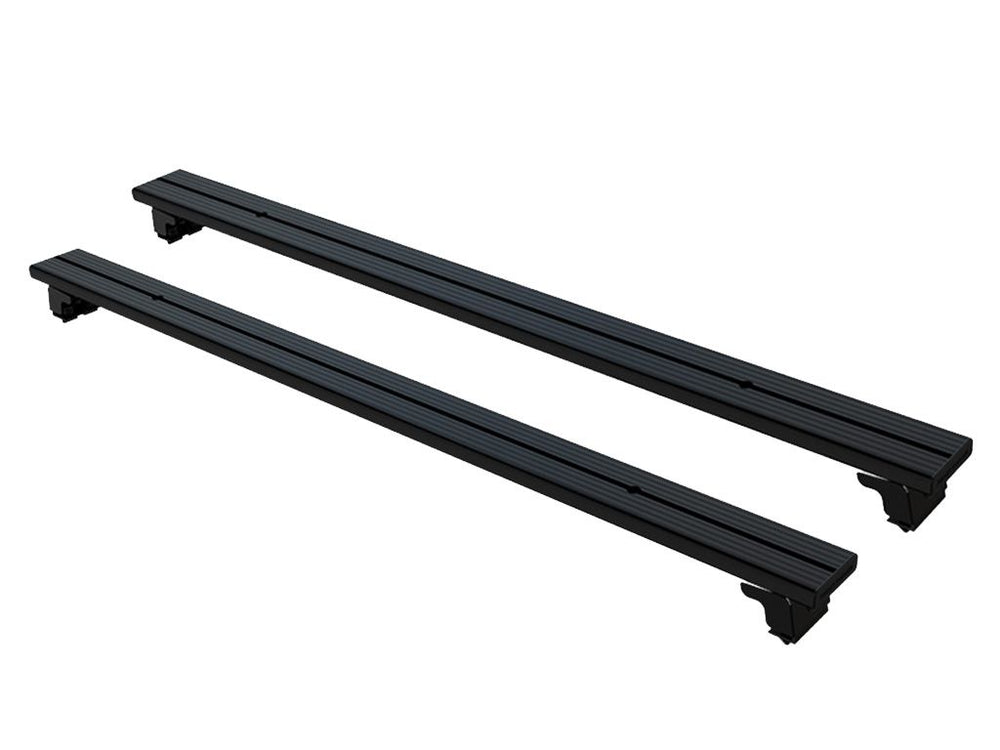

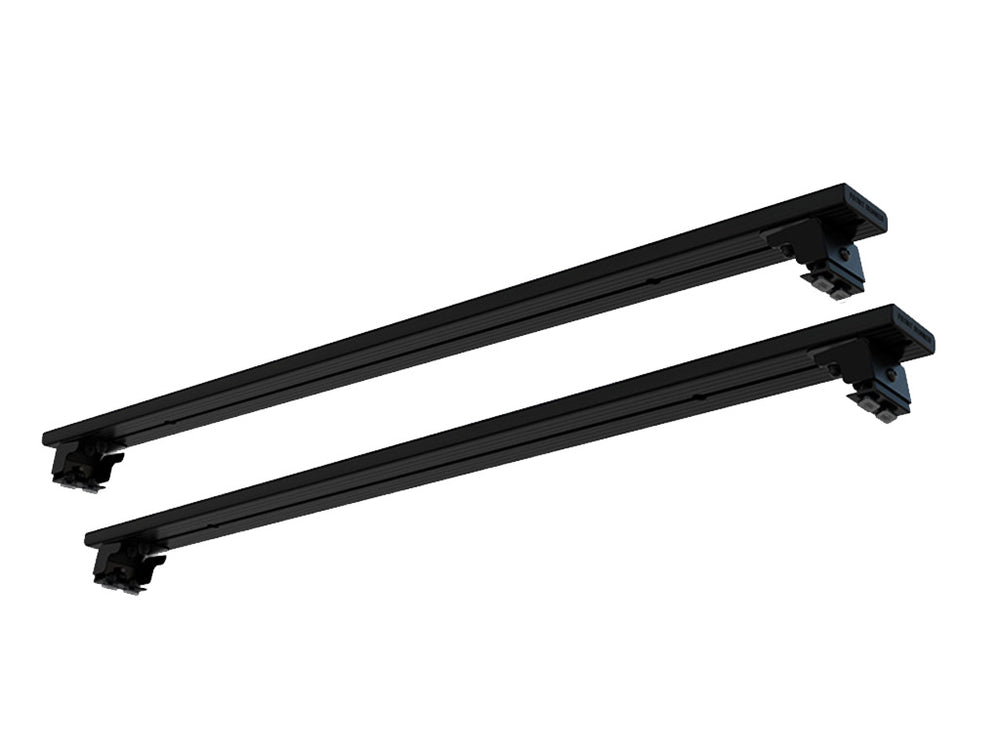

Front Runner | Canopy Load Bar Kit / 1475mm - KRCA011
The Canopy Load Bar Kit was made for travelers who need additional canopy storage capacity, but don’t want to sacrifice a low-profile build. These 1475mm bars use the same durable aluminum slats as the Slimline II Roof Rack, allowing you to mount Front Runner accessories.
2x FASS012 - Foot Set / 40mm - 50mm
1x LBSK017 - Roof Load Bar Pair 1475mm(W)
Black epoxy powder - coated T6 aluminium
Approximate Installed Weight: 6kg (13.23lbs)

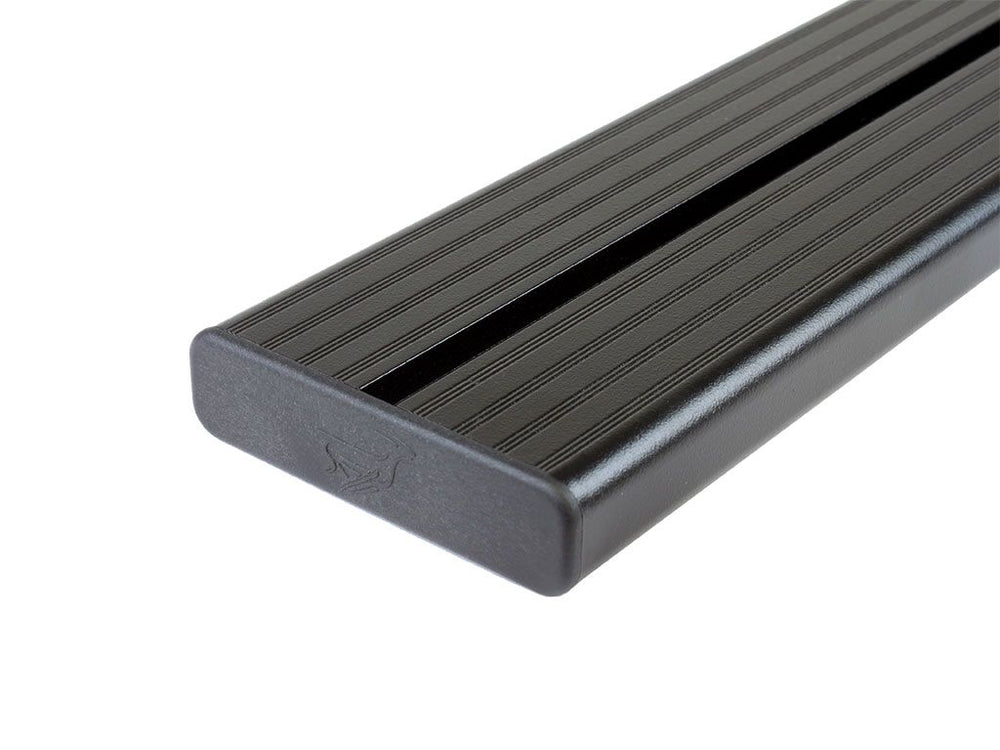

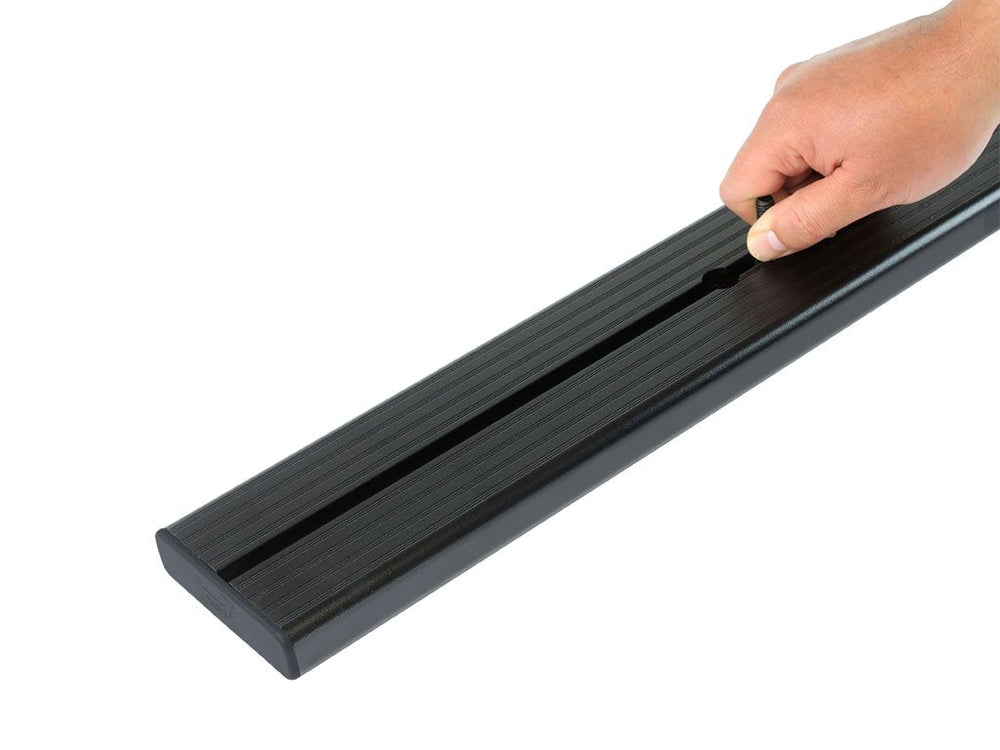

The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Load Bar Kit, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot, Grab-On Foot, or Strap-On Foot listed above.
If your Load Bar kit uses Legs, add the height of the Load Bar (22mm/ 7/8") to the height of the Legs listed above to determine the height of the rack from your vehicle's rain gutters.
If your Load Bar kit uses Foot Rails, add the height of the Load Bar (22mm/ 7/8") to the height of the Foot Rails listed above to determine the height of the rack from the crown (highest point) of the vehicles roof.
Width: 110mm (4")
Length: 1585mm (63")
Height: 135mm (6")
Weight: 5.6kg (12lbs)
