Front Runner | Mercedes X-Class w/MB Style Bars (2017-Current) Slimline II Load Bed Rack Kit - KRMX001T

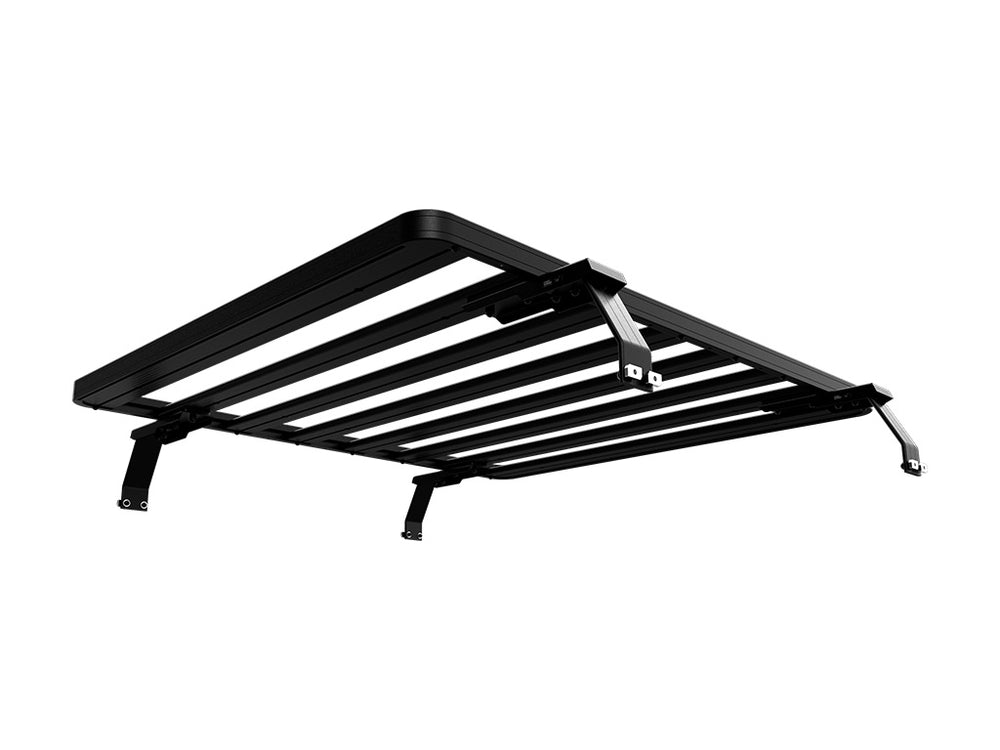

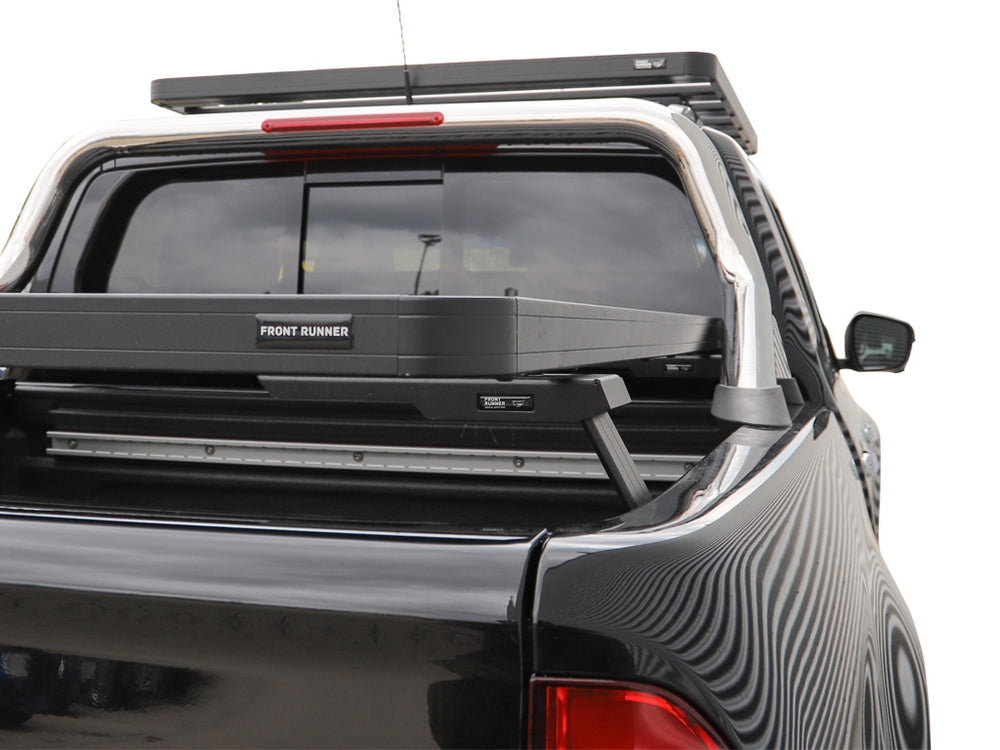

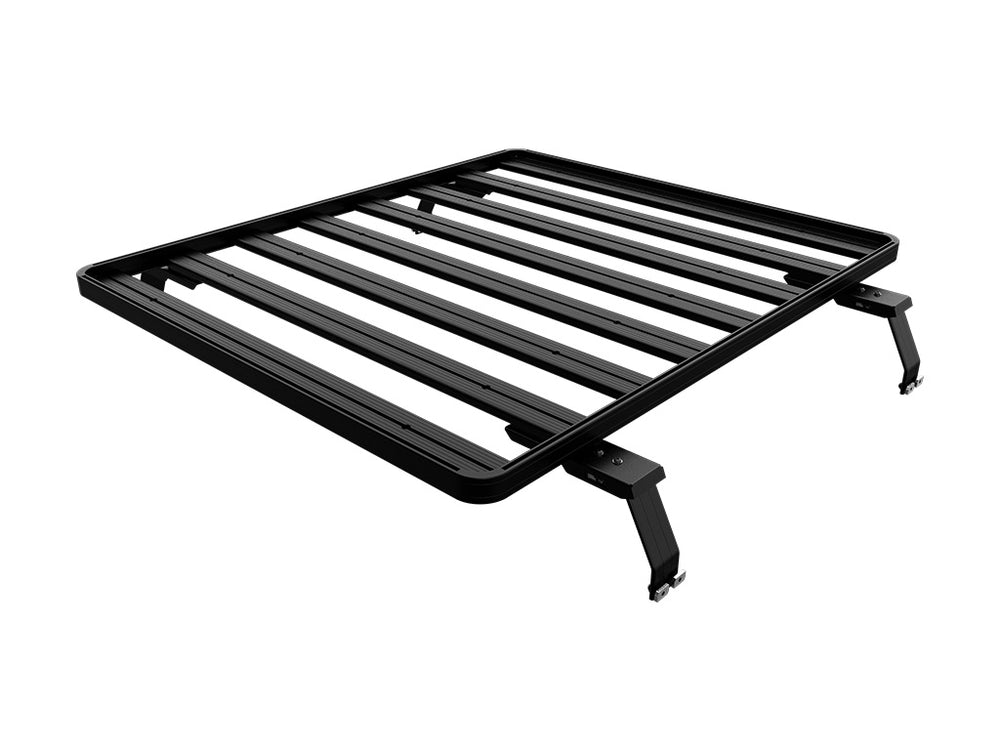

This kit creates a full-size rack that sits above your Mercedes X-Class’s (2017 + w/ MB Style Bars) load bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1345mm x 1560mm) and 4 Pickup Truck Bed Universal Legs that fit into the existing factory/OEM bed tracks. No drilling required.

This kit creates a full-size rack that sits above your Mercedes X-Class’s (2017 + w/ MB Style Bars) load bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1345mm x 1560mm) and 4 Pickup Truck Bed Universal Legs that fit into the existing factory/OEM bed tracks. No drilling required.

All Front Runner Rack Kits contain installation instructions, as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Consisting of:

2 x LASS026 - Universal Load Bed Leg / Tall (Pair) - by Front Runner
2 x RRAC109 - Gutter Mount Leg Extensions - by Front Runner
1 x RRSTG08 - Slimline II Tray - 1345mm(W) X 1560mm(L) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 31kg (69lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle™s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 450mm (18")
Length 1610mm (63")
Height 270mm (11")

Shipping Weight:

Weight 36.5kg (80.4lbs)
