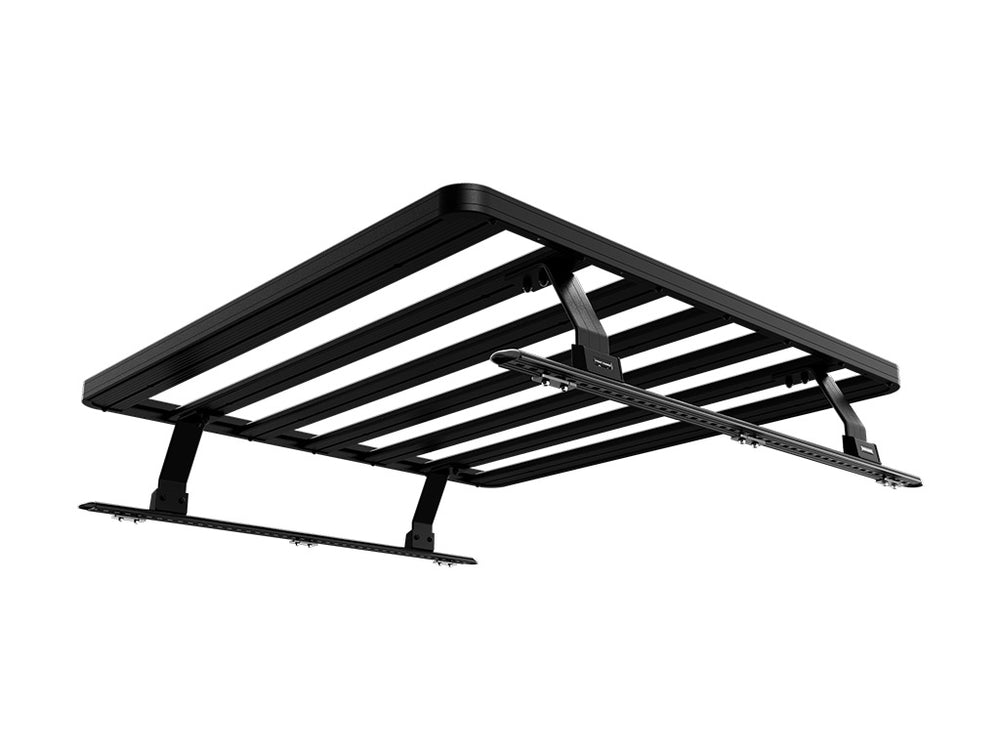

This kit creates a full-size rack that sits above your Chevrolet Colorado's (2015-current) truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1425mm x 1358mm), 2 Tracks, 2 Pickup Truck Bed Universal Legs that fit into the Tracks, and 2 Pickup Roll Top Leg Mounts. Drilling is required for installation.

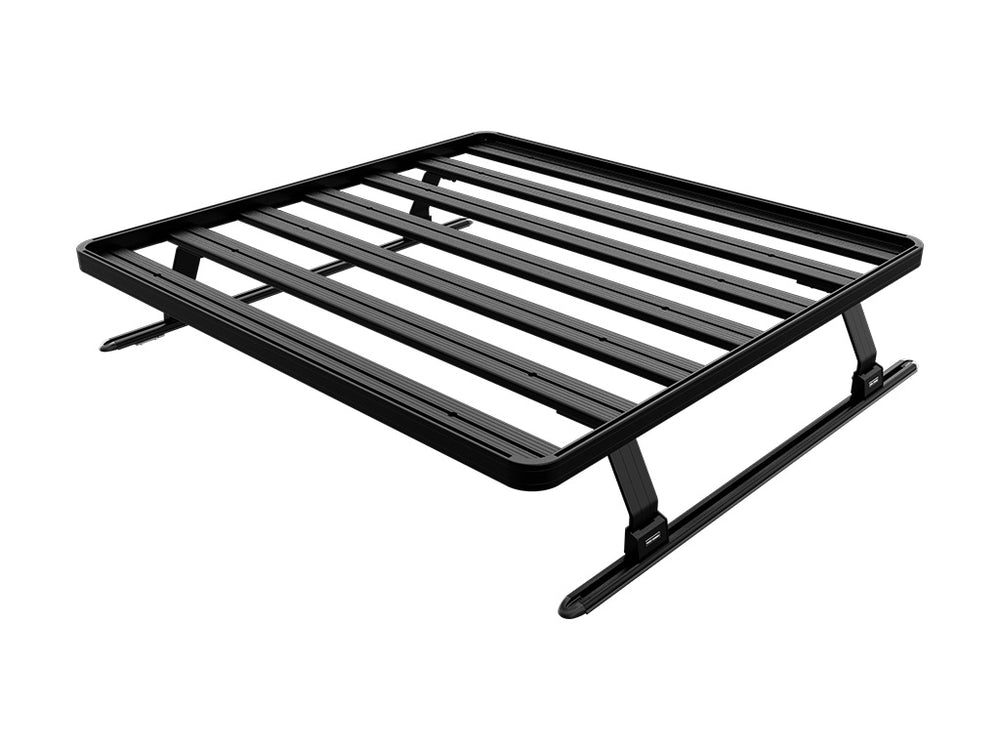

This kit creates a full-size rack that sits above your Chevrolet Colorado's (2015-current) truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1358mm), 2 Tracks and 4 Pickup Roll Top Leg Mounts that fit into the Tracks. Drilling is required for installation.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
This Rack Kit creates a second level of storage for your load bed above the roll top of your Chevy Colorado.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
A load bed top ledge with a minimum surface area of 55mm wide and length of 1000mm - 1600mm is required to mount Front Runner tracks.
Dependent on the roll top used a minimum clearance of 20mm is required from the inner face of the leg base, to the roll top outer edge. This applies when the leg is fitted to a Front Runner Track or other Roll Top channel.
For further information on installation, please see the fitment instructions in the INSTALL tab.
Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.
Consisting of:
2x LASS028 - Pick-Up Roll Top Leg Mount
1x RRAC939 - Pickup Load Bed Bolt Kit / 30mm
1x RRSTM07 - SLII Tray - 1475mm(W)X1358mm(L)
1x TRBU002 - Pick-Up Load Bed Tracks / 1200mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 31.41kg (69.25lbs)

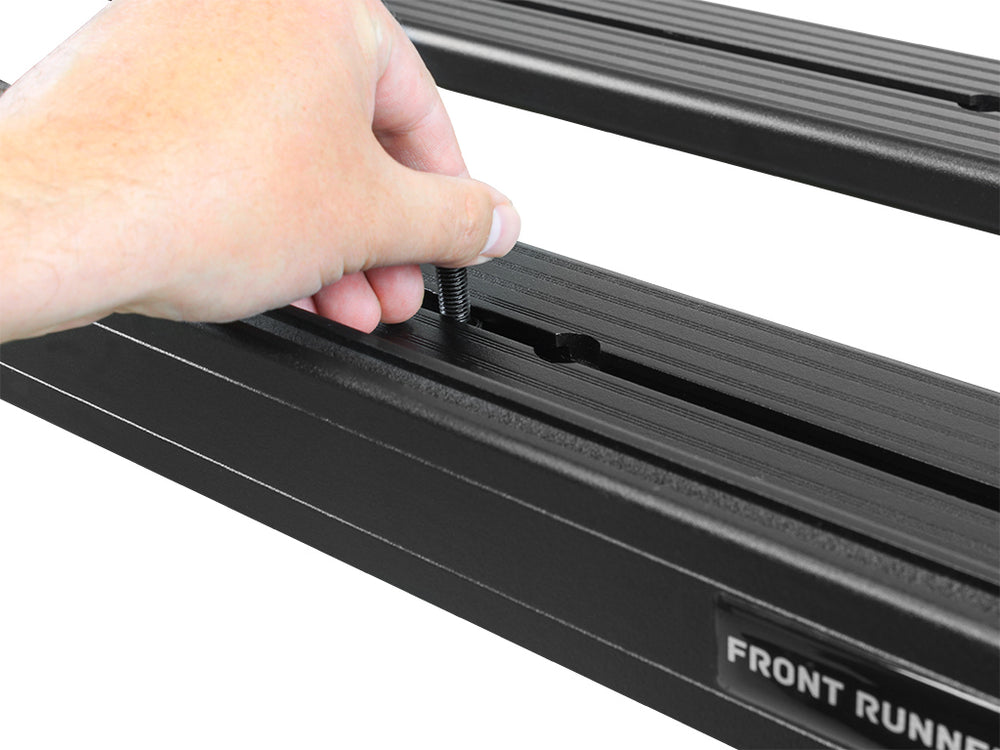

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 455mm (18")
Length: 1730mm (68")
Height: 270mm (11")
Shipping Weight:
Weight: 34.63kg (76lbs)
