Front Runner | Pickup Mountain Top Slimline II Load Bed Rack Kit / 1475(W) x 1358(L) - KRRT008T

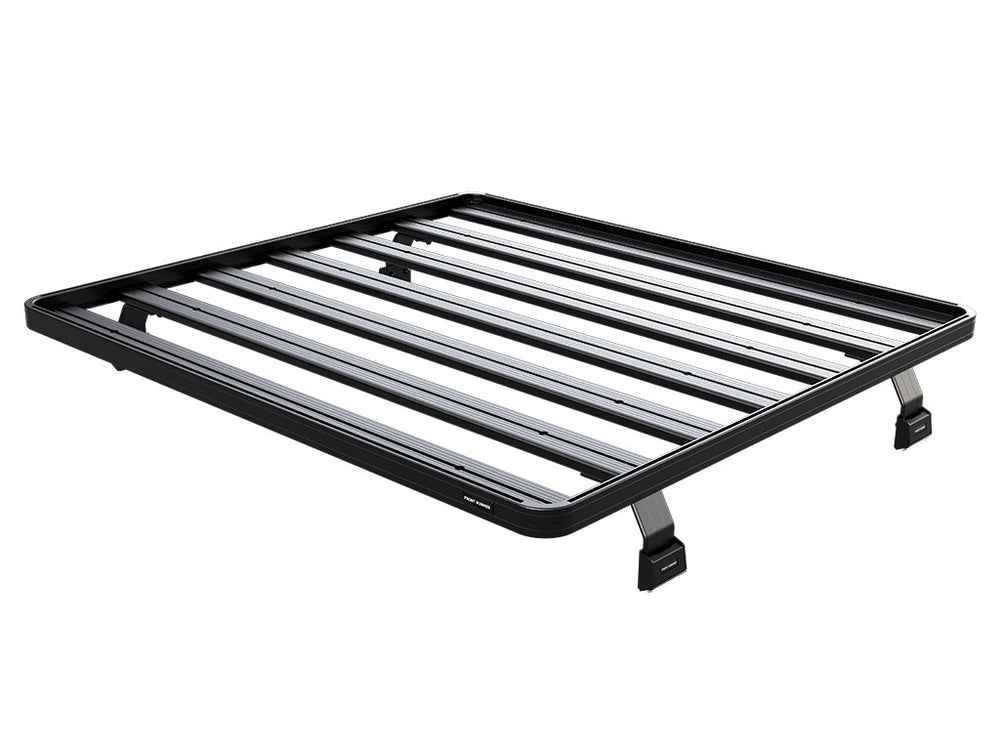

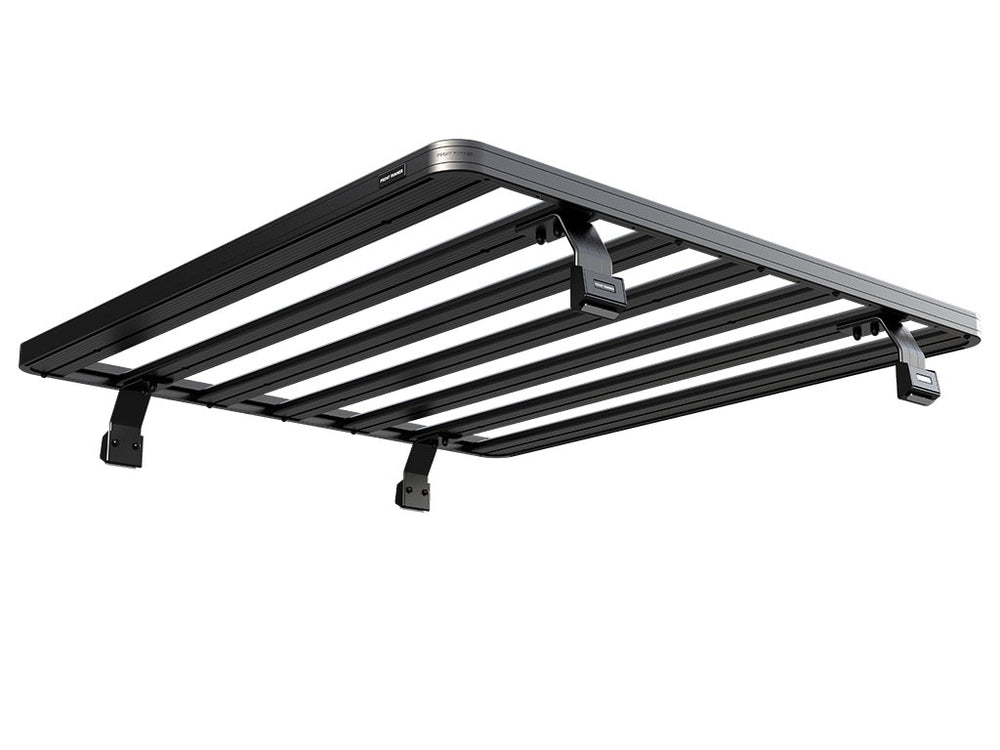

This kit creates a full-size rack that sits above your Pickup Truck's load bed when fitted with a Mountain Top Cover. This Slimline II cargo carrying rack kit contains the Slimline II tray (1475mm x 1358mm) and 4 Pickup Roll Top Leg Mounts that fit into the existing factory/OEM tracks in your Mountain Top Cover.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: This Kit is only suitable for Mountain Top Roll Covers with tilted rails.

KRRT008T - Pickup Mountain Top Slimline II Load Bed Rack Kit / 1475(W) x 1358(L) - by Front Runner

Consisting of:

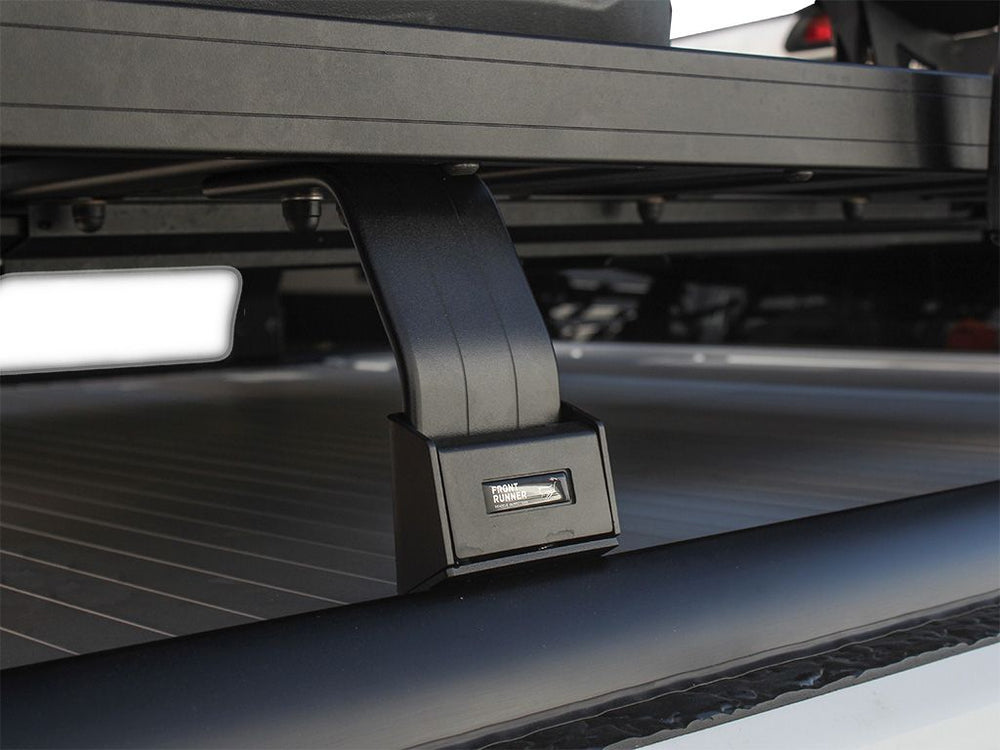

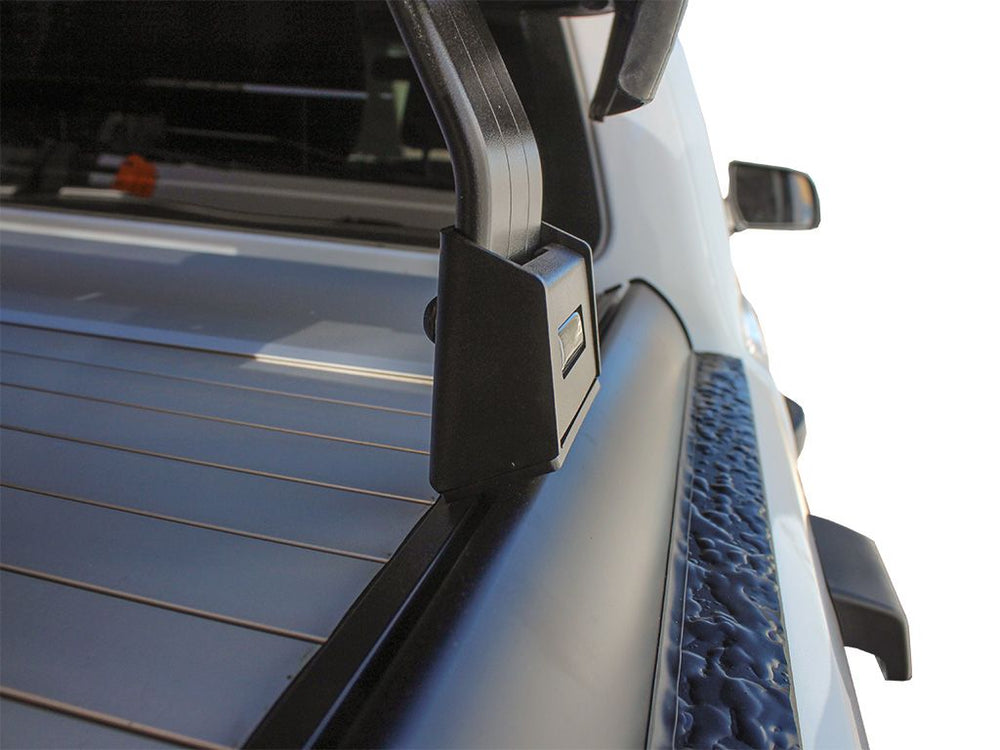

2x LASS029 - Pick-Up Roll Top Leg Mount / Mountain Top
1x RRSTM07 - SLII Tray - 1475mm(W)X1358mm(L)

Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed Weight: 28.3kg (62.39lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width: 455mm (18")

Length: 1730mm (68")

Height: 235mm (9")


Shipping Weight:

Weight: 28.37kg (62lbs)
