Front Runner | Ford F150 Raptor 5.5' (2009-Current) Slimline II Load Bed Rack Kit - KRFF021T

Haul more with this full-size, tough-as-nails Ford F150 Raptor 5.5' rack kit, which will free up your precious load bed cargo space.

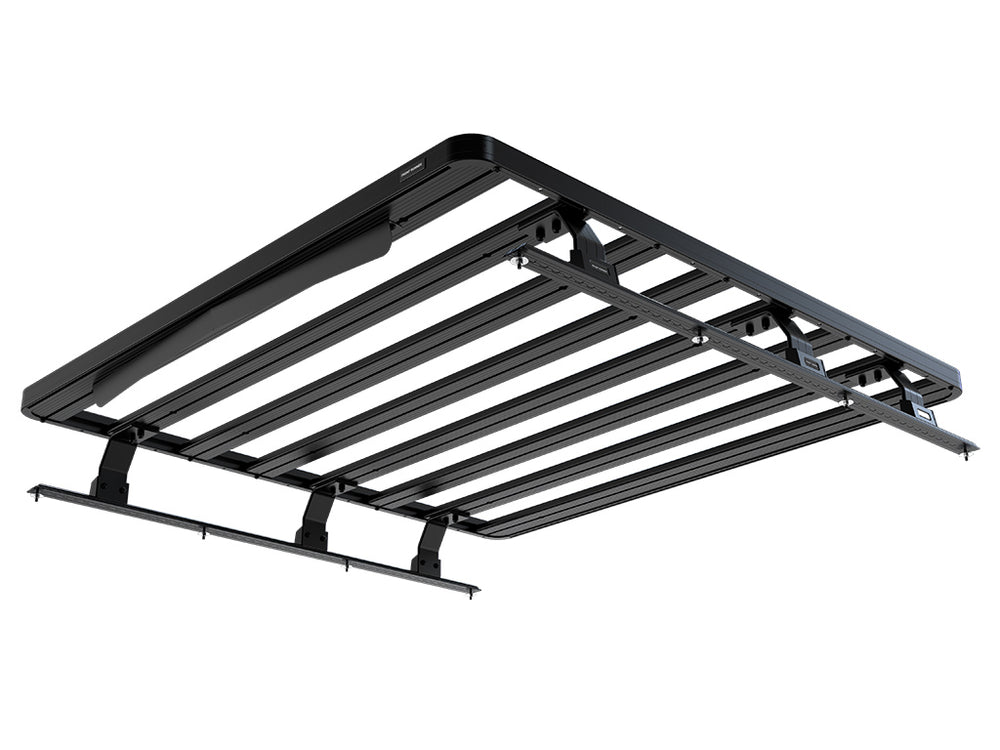

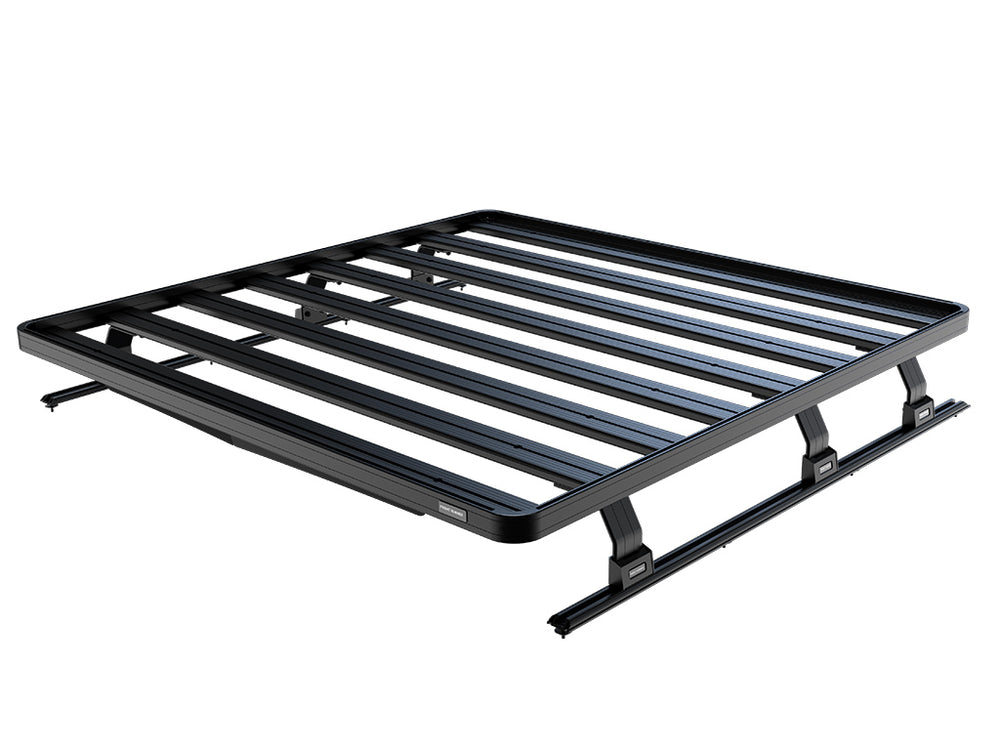

This kit creates a full-size rack that sits above your Ford F150 Raptor truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1575mm x 1358mm), 2 Tracks, and 6 Pickup Truck Bed Universal Legs that fit into the Tracks.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Drilling may be required to mount the track to the bed of your truck. See the track and leg installation instructions in the INSTALL tab for further details.

Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.

Consisting of:

3x LASS028 - Pick-Up Roll Top Leg Mount
1x RRAC939 - Pickup Load Bed Bolt Kit / 30mm
1x RRSTP07 - SLII Tray - 1575mm(W)X1358mm(L)
1x TRBU003 - Pick-Up Load Bed Tracks / 1400mm(L)

Material Used:

Black epoxy powder - coated T6 aluminium

High strength steel

Approximate Installed Weight: 34.12kg (75.22lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width: 450mm (18")

Length: 1730mm (68")

Height: 270mm (11")

Shipping Weight:

Weight: 37kg (81lbs)
