Front Runner | Toyota Hilux Legend RS Slimline II Load Bed Rack Kit - KRTH013T
Haul more in your Toyota Hilux with this full-size, tough-as-nails rack kit, which frees up your precious load bed cargo space.

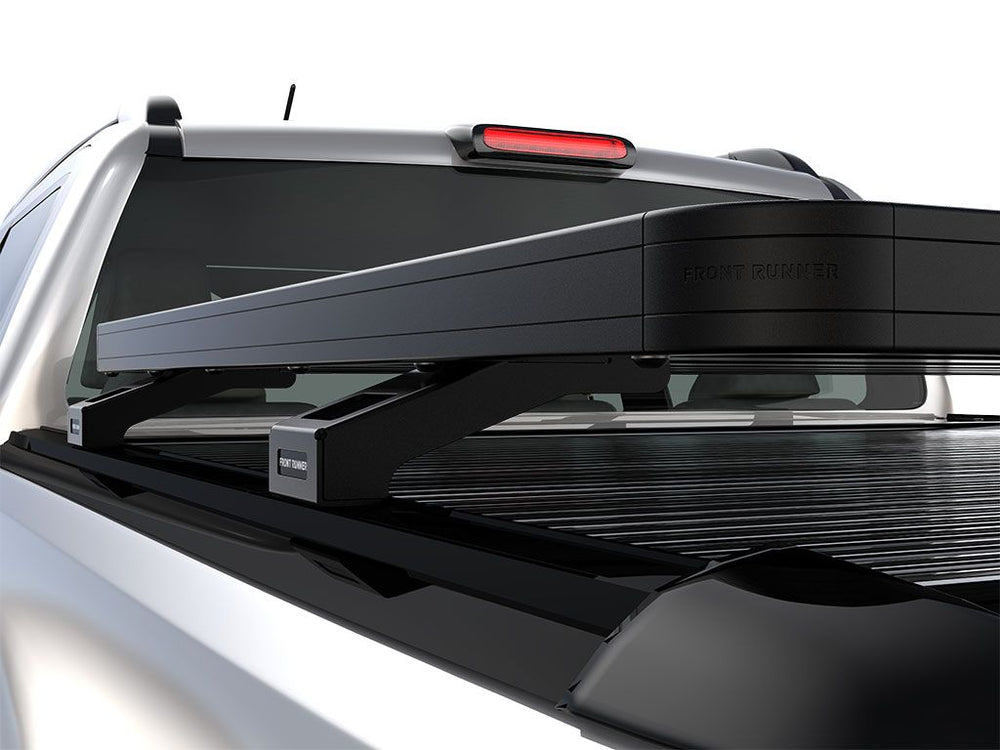

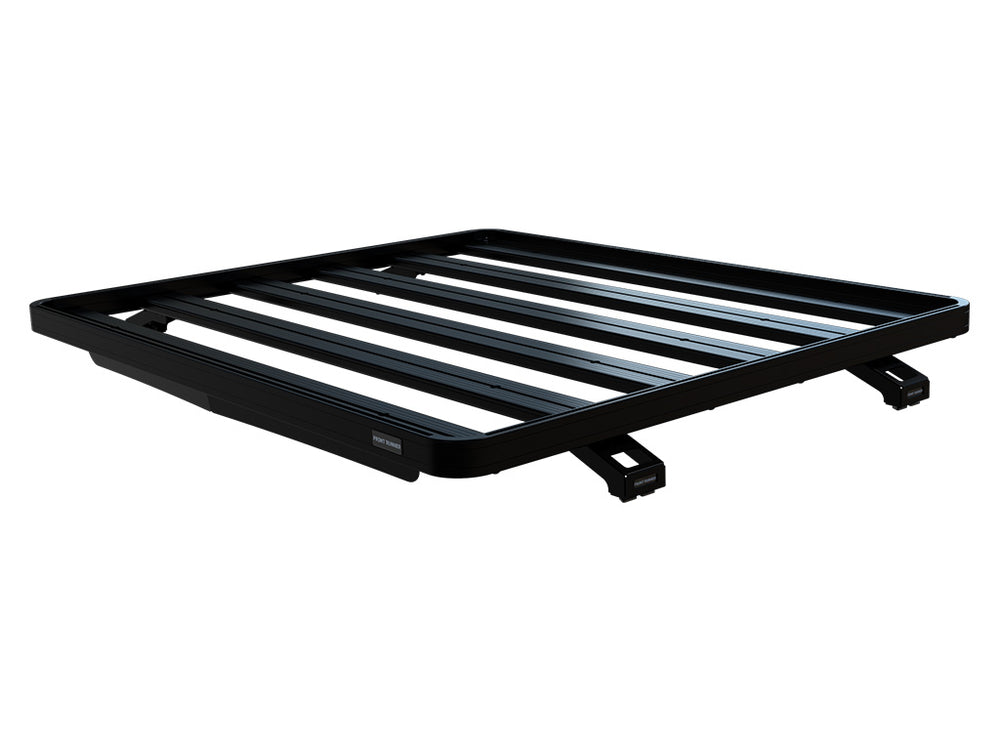

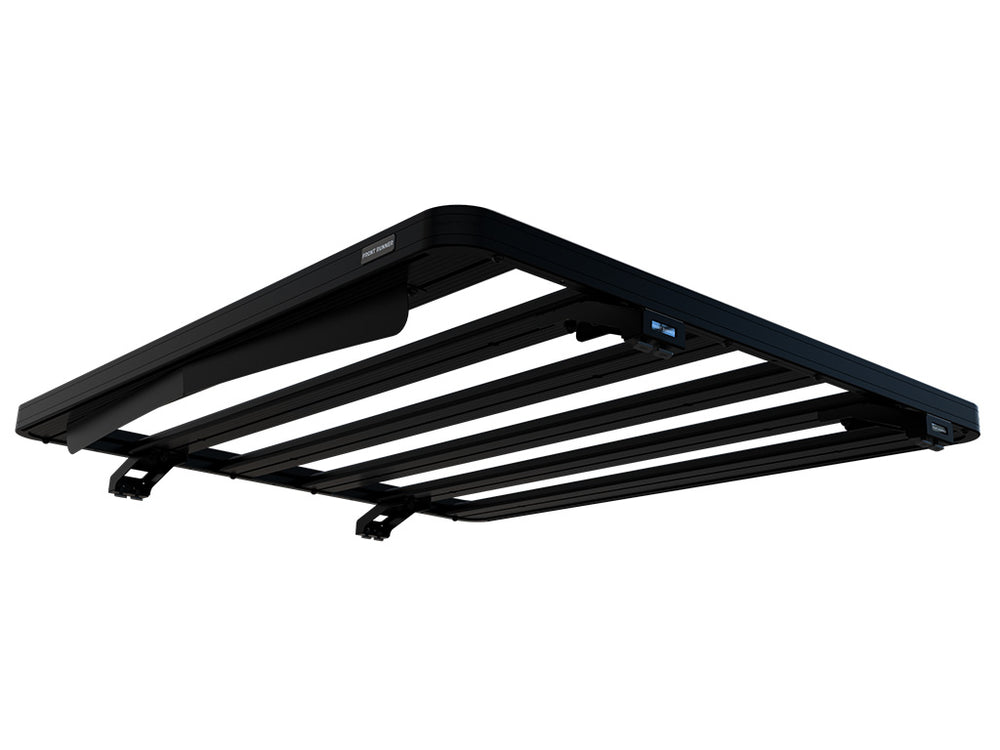

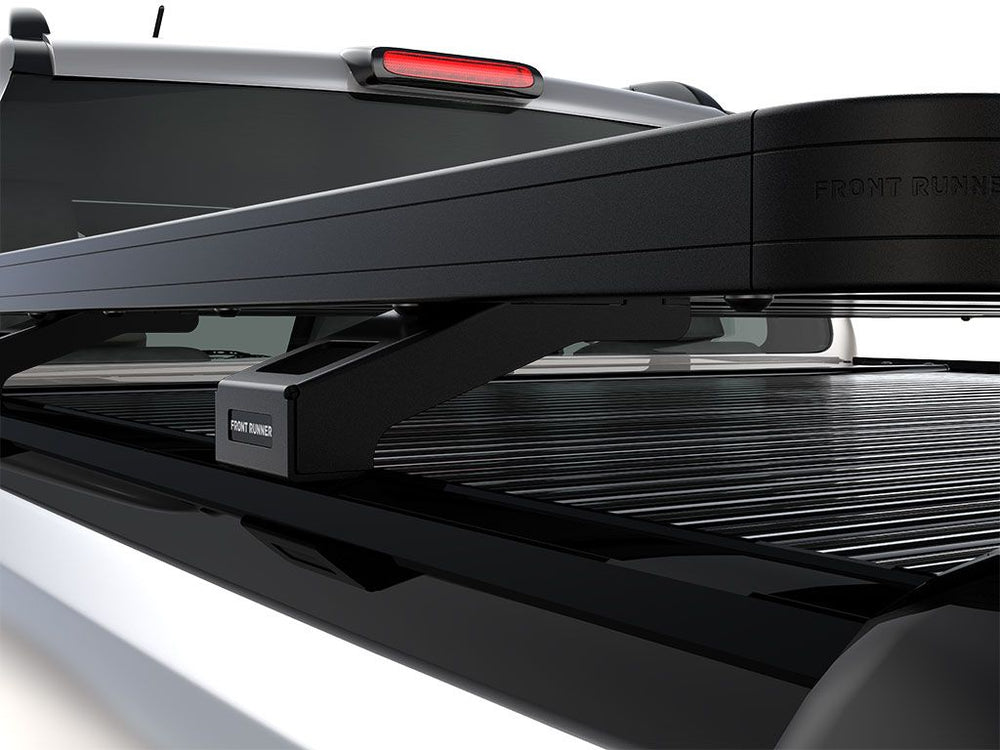

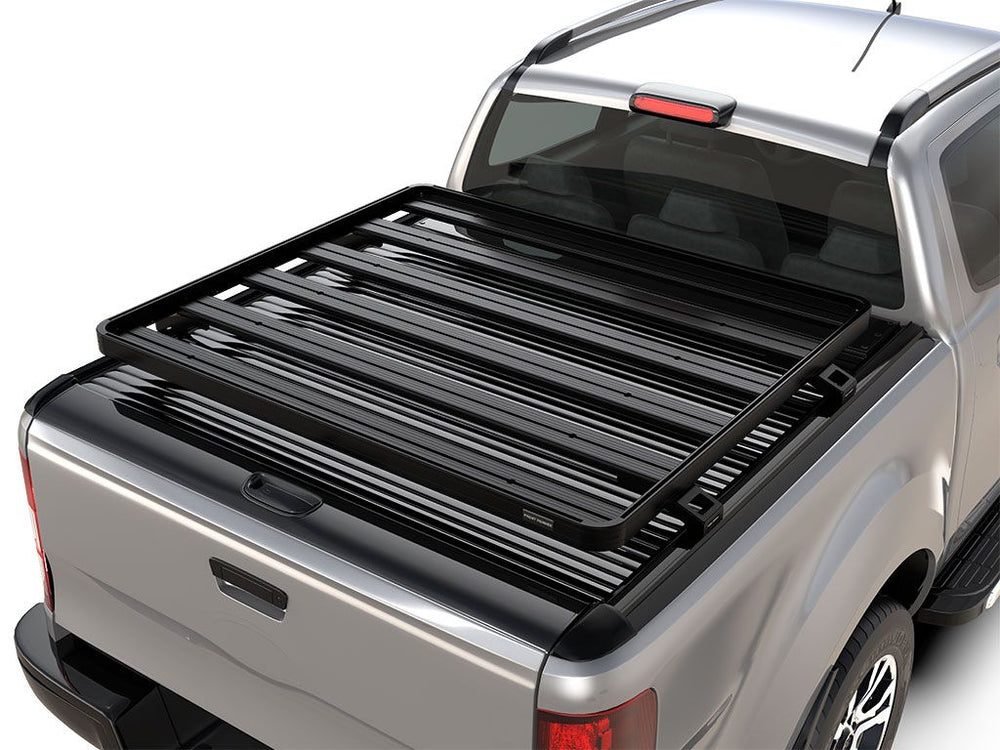

This kit creates a full size rack that sits above your Toyota Hilux Legend RS's truck bed. This Slimline II cargo carrying rack kit contains the Slimline II tray (1345mm x 1156mm) and 4 feet that fit into the existing tracks.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
Note: If your Roll Top extrusion has a 6mm (0.24") to 7mm (0.28") slot opening, you may need Track Mount Stud Plate for installation.
KRTH013T - Toyota Hilux Legend RS Slimline II Load Bed Rack Kit - by Front Runner
2x FASS016 - Flat Feet (pair) / 65mm
1x RRSTG06 - SLII Tray - 1345mm(W)X1156mm(L)
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 48.2kg (106.26lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Weight: 445mm (18")
Length: 1730mm (68")
Height: 240mm (9")
Weight: 23.8kg (52lbs)
