This 1560mm/61.4" long, full-size, Slimline II cargo carrying roof rack kit for the Nissan NV200 contains the Slimline II Tray, Wind Deflector, 2 Tracks and 6 Feet. Drilling is required for installation.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Front Runner Racks are backed by a Limited Lifetime Warranty*
For further information on installation, please see the fitment instructions in the INSTALL tab

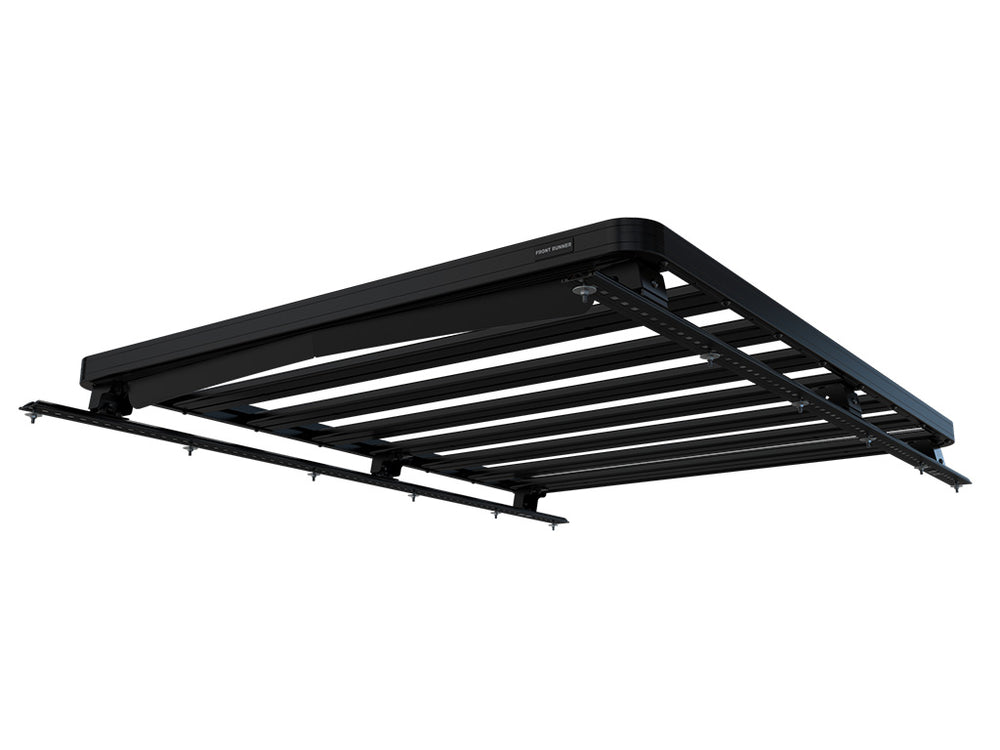

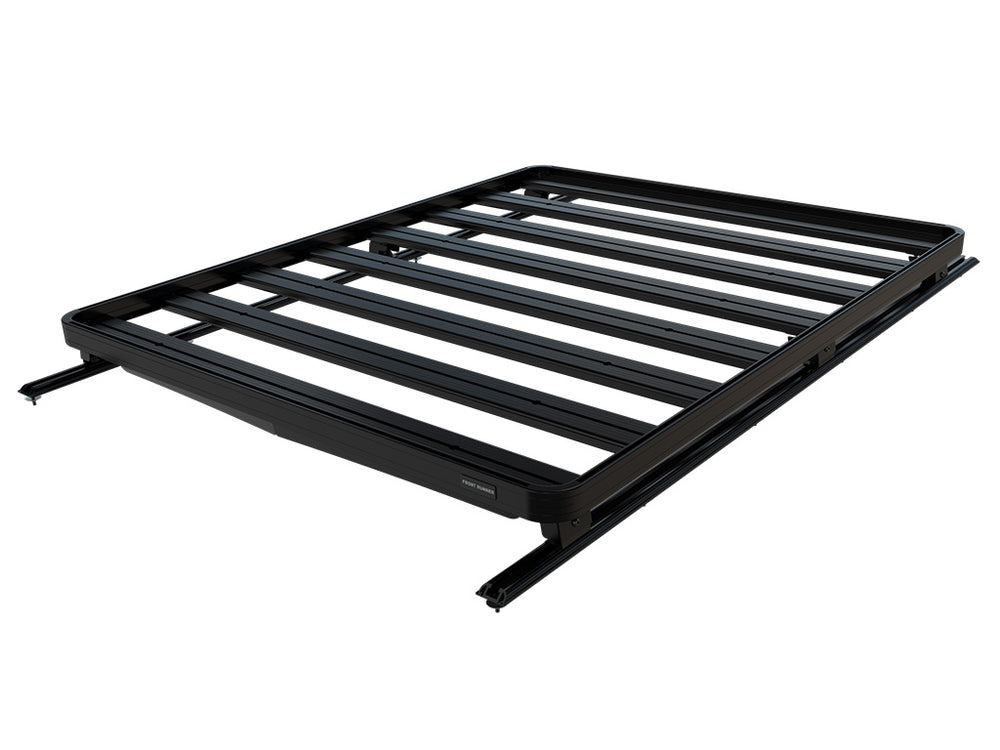

KRNN003T - Nissan NV200 (2009-Current) Slimline II Roof Rack Kit - by Front Runner
Consisting of:
2x FASS012 - Foot Set / 40mm - 50mm
1x FASS013 - Foot Set / 60mm - 70mm
1x RRSTD08 - SLII Tray - 1255mm(W)X1560mm(L)
1x TRAC010 - Universal Track Non Drilled / 1800mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 29.86kg (65.83lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 440mm (17")
Length: 1805mm (71")
Height: 270mm (11")
Shipping Weight:
Weight: 29.2kg (64lbs)
