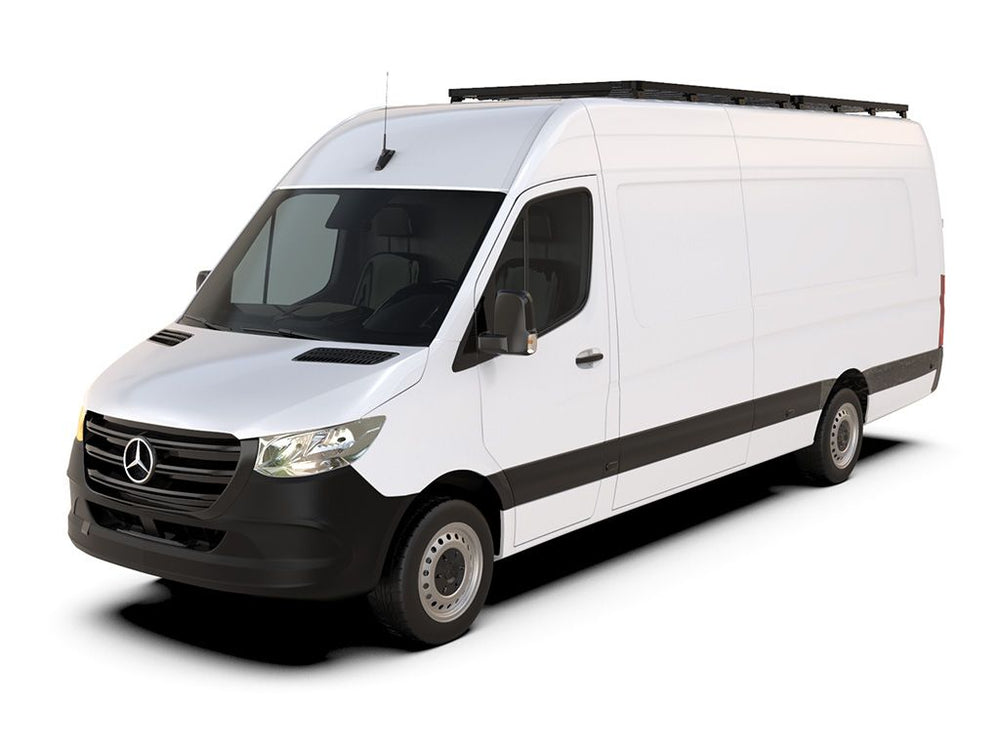

Front Runner | Mercedes Benz Sprinter 170in/L3/LWB Wheelbase w/OEM Tracks (2006-Current) Slimline II Roof Rack Kit / Tall - KRMS012T

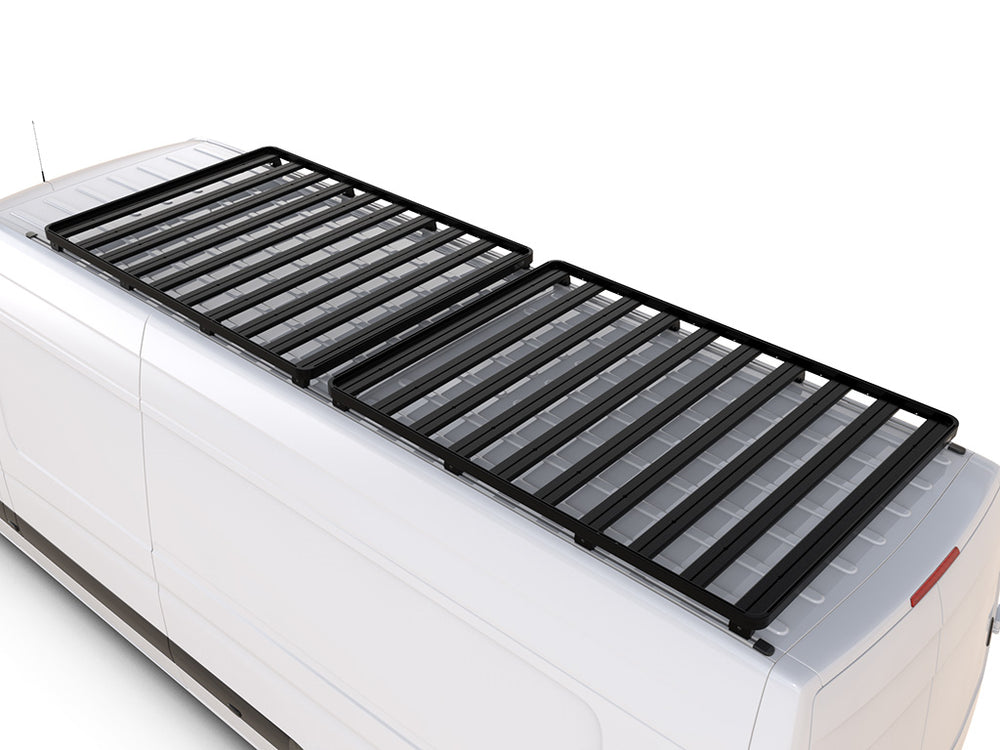

This 3928mm/154.7'' long, full-size, Slimline II cargo carrying roof rack kit for the Mercedes Benz Sprinter with OEM Tracks, contains 2 Slimline II Trays, Wind Deflector, and 16 Feet. This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack. Installs easily to factory mounting points with no drilling required.

This 3928mm/154.7" long, full-size, Slimline II cargo carrying roof rack kit for the Mercedes Benz Sprinter with OEM Tracks, contains 2 Slimline II Trays, Wind Deflector, and 16 Feet. This taller kit has space for mounting the Front Runner tables or other compatible accessories under the rack. Installs easily to factory mounting points with no drilling required.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.

All Front Runner Racks are backed by a Limited Lifetime Warranty*

Note: Fits 2nd Gen (906) and 3rd Gen (907) Mercedes Benz Sprinter Models only.

Consisting of:

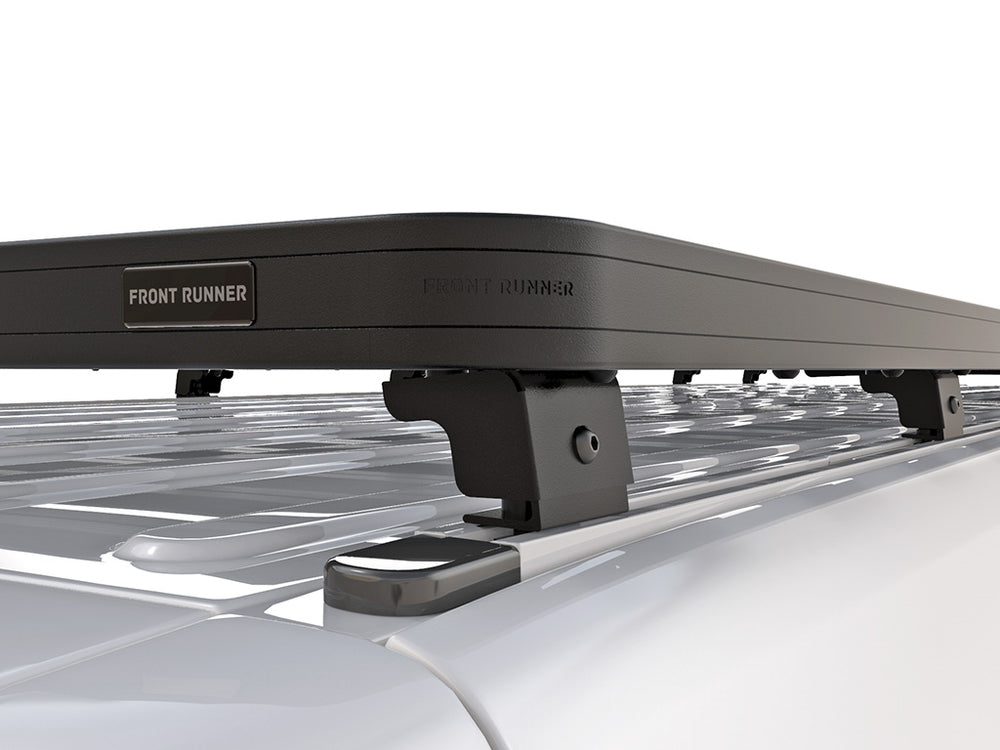

8 x FASS013 - Foot Set / 60mm-70mm - by Front Runner
8 x RRAC907 - Stud Plate MB Sprinter Track

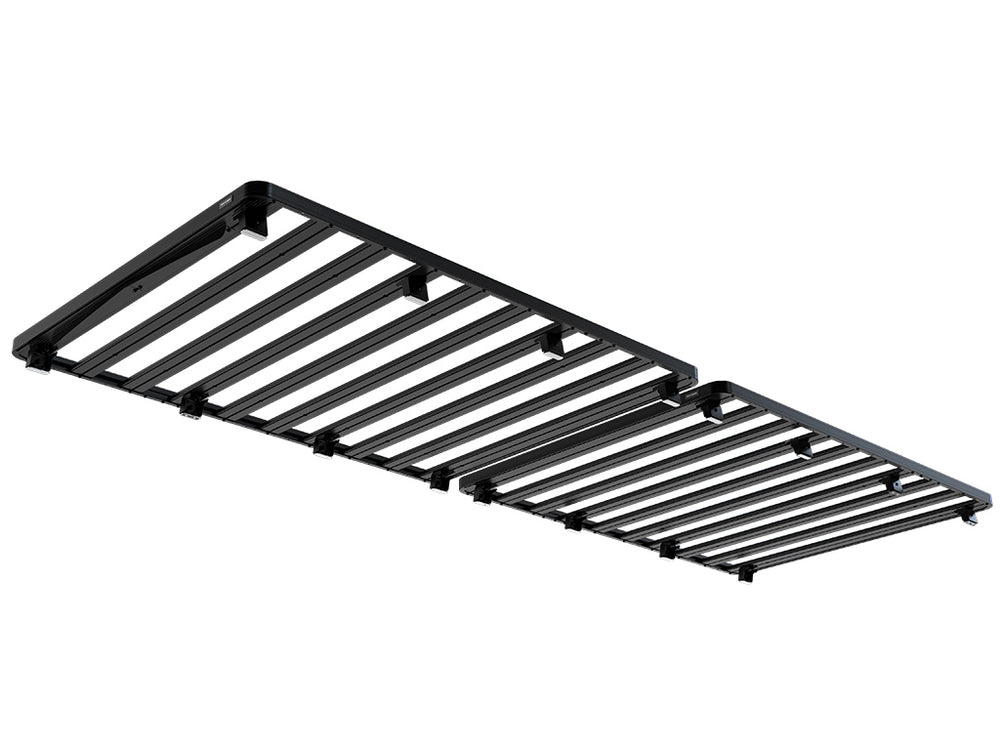

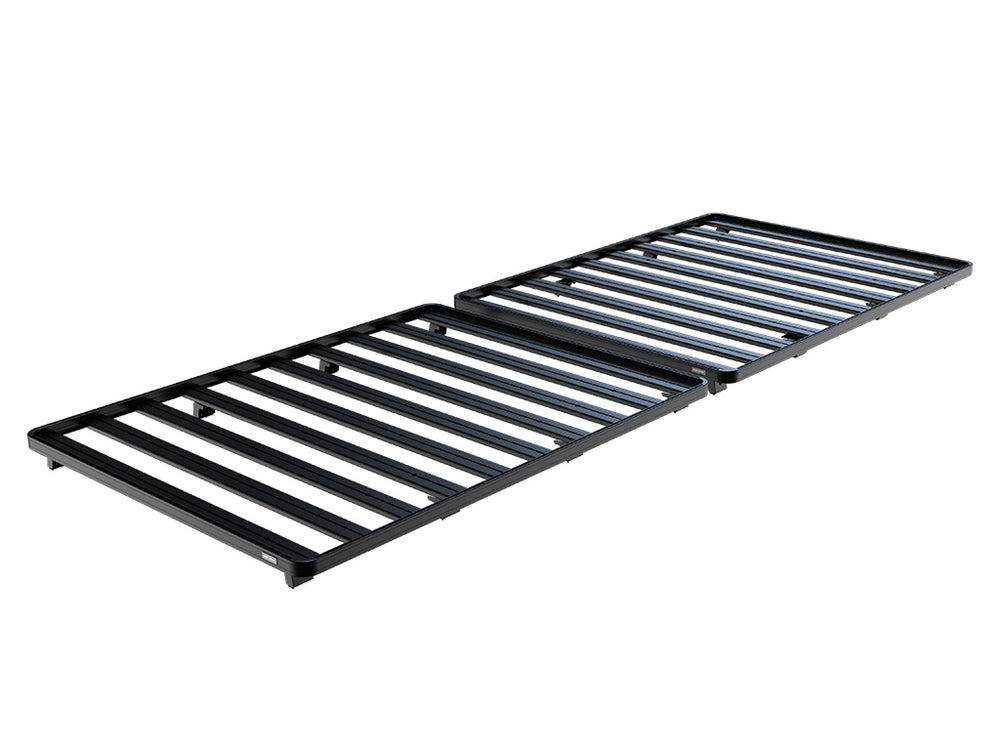

2 x RRSTM10 - Slimline II Tray - 1475mm(W) X 1964mm(L) - by Front Runner
1 x WDST009 - Wind Deflector 20mm Lip Wide Pair / 1345mm(W) - by Front Runner

Material used:

Black epoxy powder-coated T6 aluminium
High strength steel

Approximate Installed Weight 62kg (136lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:

Width 450mm (18")
Length 1615mm (64")
Height 354mm (14")

Shipping Weight:

Weight 72.1kg (158.6lbs)
