Front Runner | Ford Ranger Raptor (2019-Current) Slimline II Roof Rack Kit / Low Profile - KRFR013T

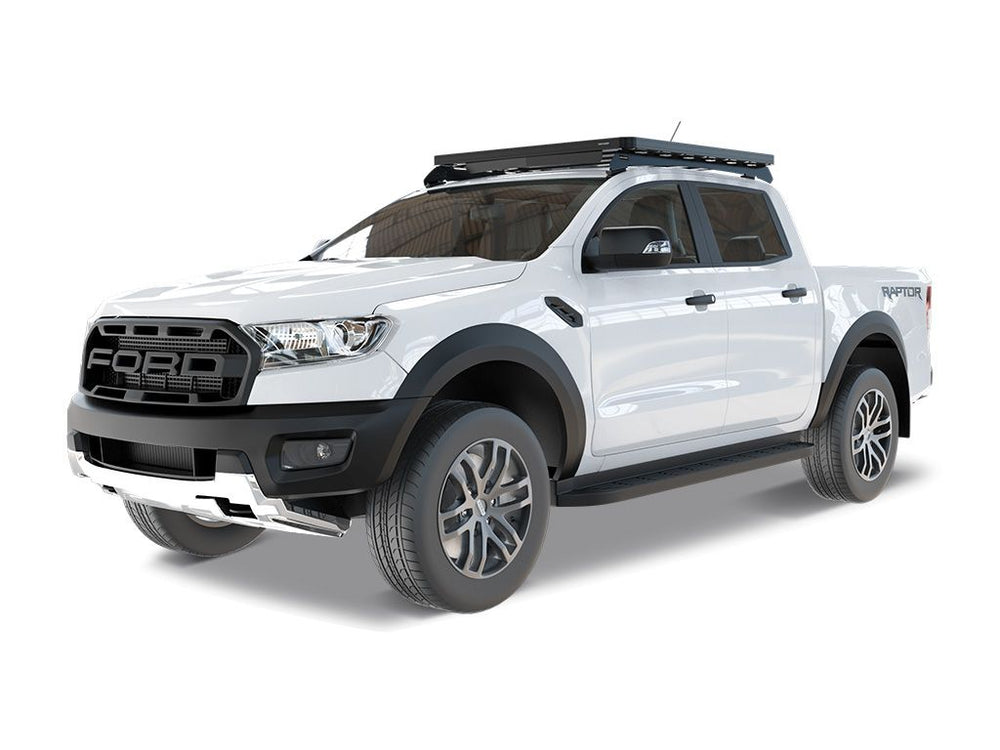

Your 2019-Current Ford Ranger Raptor can look slick on the road while geared up for adventure with this Low-Profile Slimline II Roof Rack Kit. The Slimline II opens your truck to a whole world of Front Runner accessories to build that next trip.

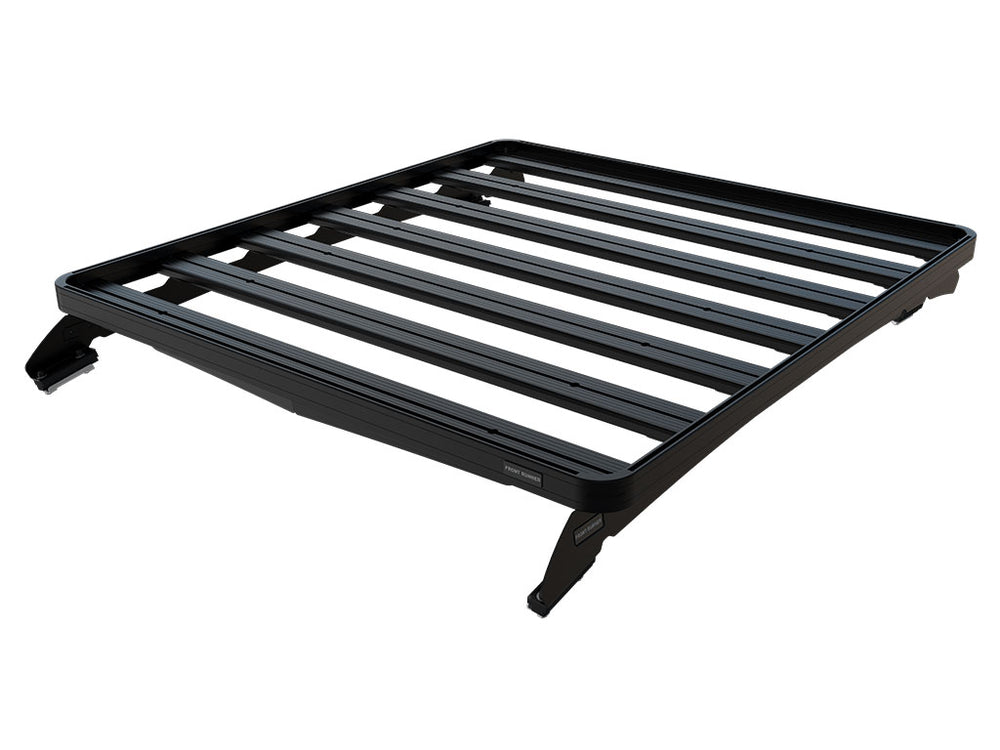

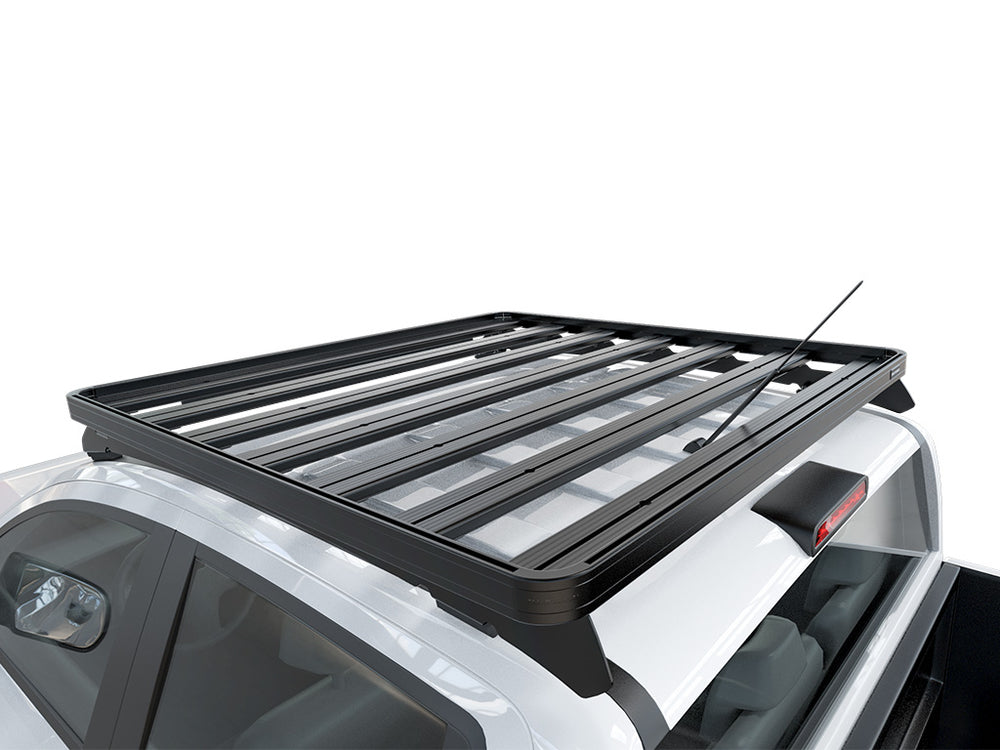

This 1358mm/53.5” long, full-size Slimline II Cargo Roof Rack kit contains the Slimline II Tray, Wind Deflector and two (2) low-profile Foot Rails to mount the Slimline II Tray.

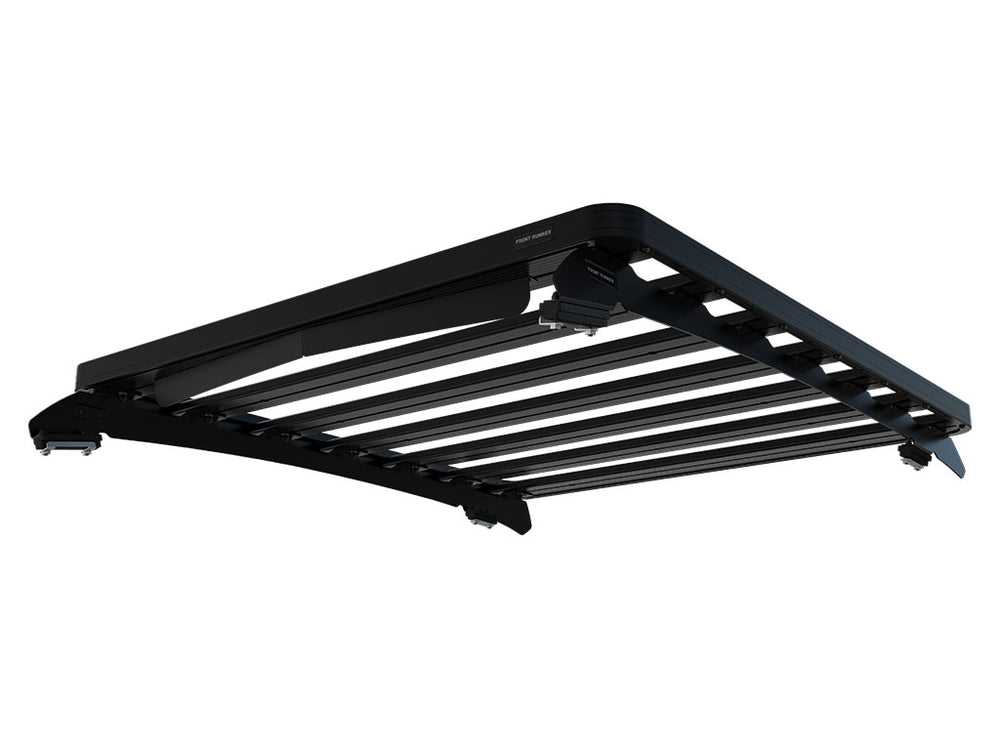

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle-specific foot rails have openings for storing compatible gear under the rack, such as Front Runner tables.

An opening on the Foot Rails allows access to Front Runner Under Rack Mount Tables (1 smaller prep or 1 larger camp size table).

All Front Runner Racks are backed by a limited lifetime warranty*

For further information on installation, please see the Fitment Guide in the Install tab.

Drilling is required for installation.

Note: Some side mount accessories are not suited for low profile foot rails such as Hi-Lift Jack Bracket and Recovery Device & Gear Holding Side Brackets.

Consisting of:
1x FAFR006 - Ford RangerT6/Wildtrak/Raptor(12-Curr)Foot Rails
1x RRSTD07 - SLII Tray - 1255mm(W)X1358mm(L)

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Approximate Installed Weight: 28.87kg (63.65lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width: 445mm (18")
Length: 1720mm (68")
Height: 250mm (10")

Shipping Weight:
Weight: 29.4kg (65lbs)
