Front Runner | Mercedes Benz V-Class L2 (2014-Current) Slimline II Roof Rack Kit - KRMV006T
$2,169.00
Product Inventory
loading..
loading..

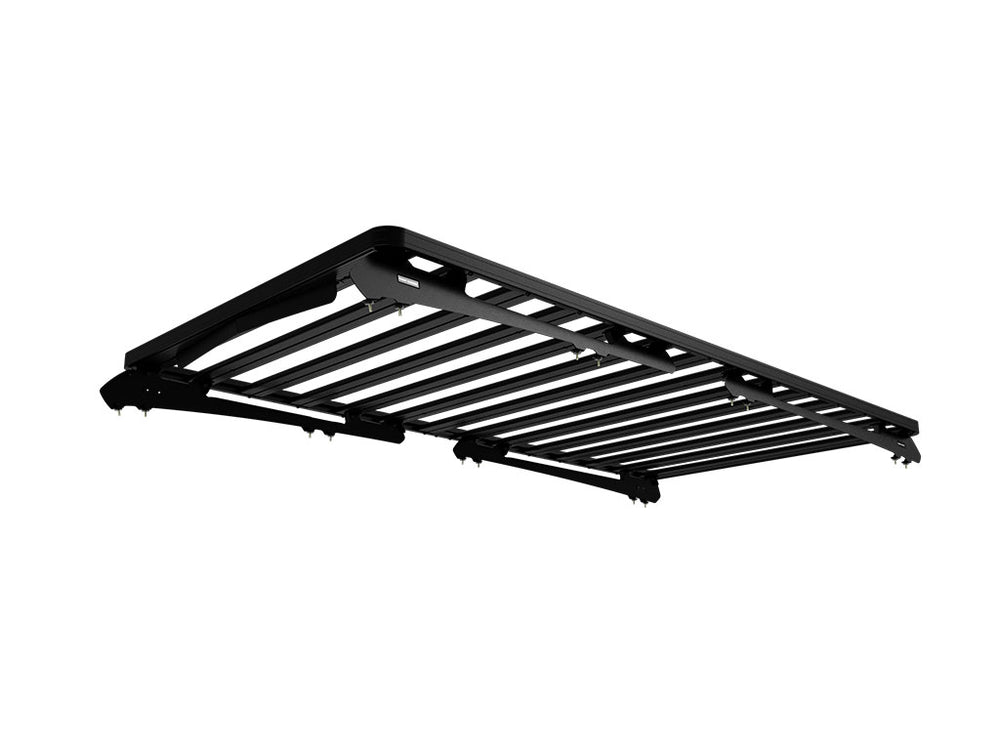

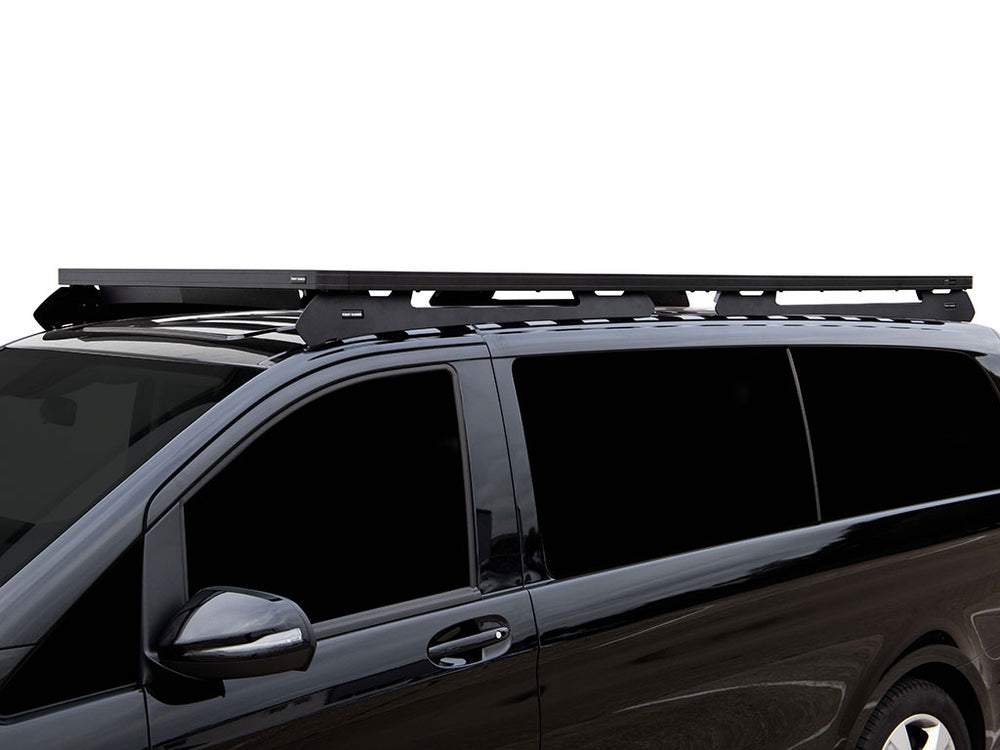

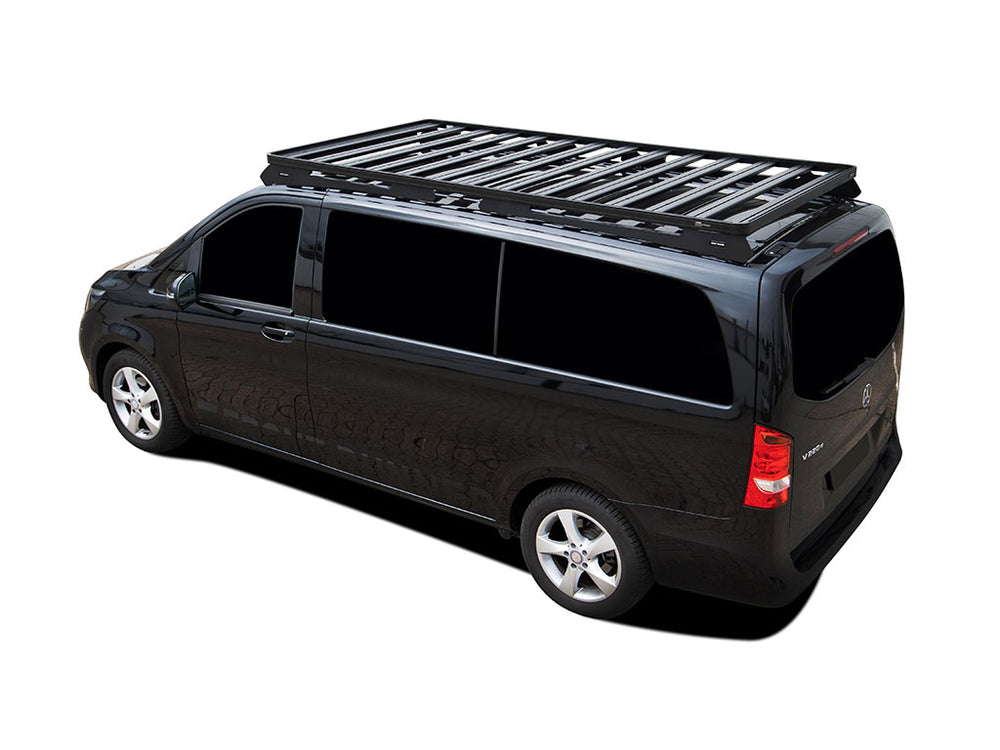

This 2772mm/109.1'' long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Mercedes Benz V-Class. Easily installs using the existing factory mounting points. No drilling required.NOTE: This kit is suitable for wheel base 3200mm/126'' with Vehicle Length: 5140mm/202.36''.
This 2772mm/109.1" long, full-size, Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your Mercedes Benz V-Class. Easily installs using the existing factory mounting points. No drilling required.

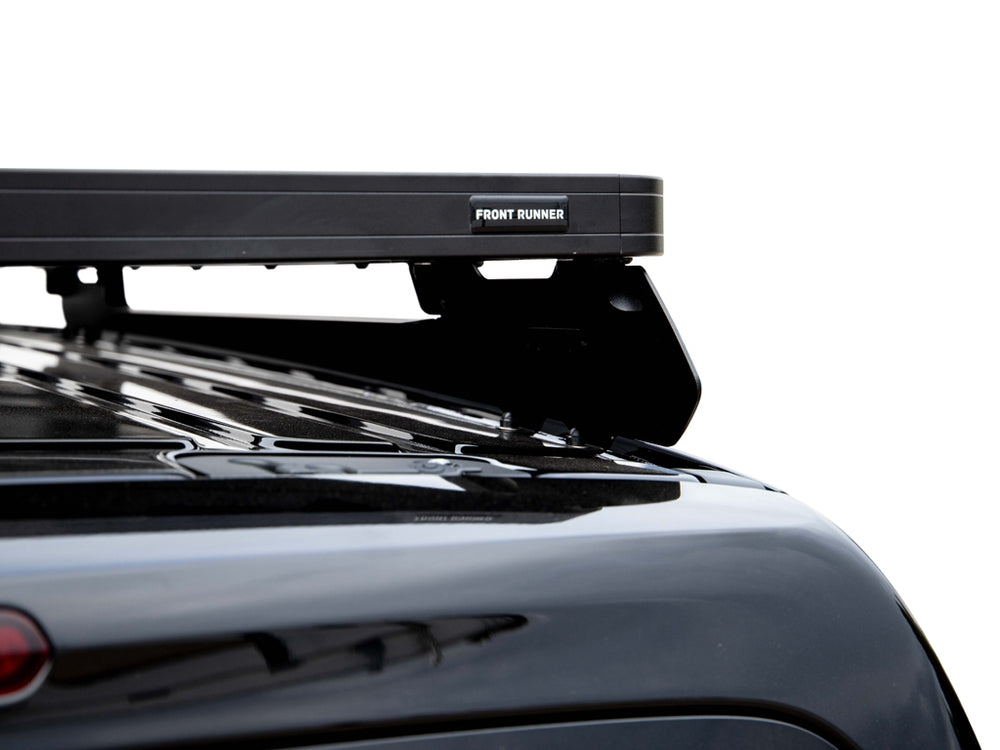

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack (such as Front Runner tables).
These Foot Rails contain 2 openings to access a Front Runner under rack mount table (1 smaller prep table and 1 larger camp size table).
All Front Runner Racks are backed by a Limited Lifetime Warranty*
Note: This Rack Kit is suitable for the Mercedes Vito Panel Van. Not suitable for vehicles that are fitted with a glass roof/Sunroof.
Consisting of:
1x FAMV001 - Mercedes Benz V Class LWB (2014-Current) Foot Rail
1x RRSTJ14 - SLII Tray - 1425mm(W)X2772mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 53.32kg (117.55lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 455mm (18")
Length: 1730mm (68")
Height: 235mm (9")
Shipping Weight:
Weight: 52.87kg (116lbs)
