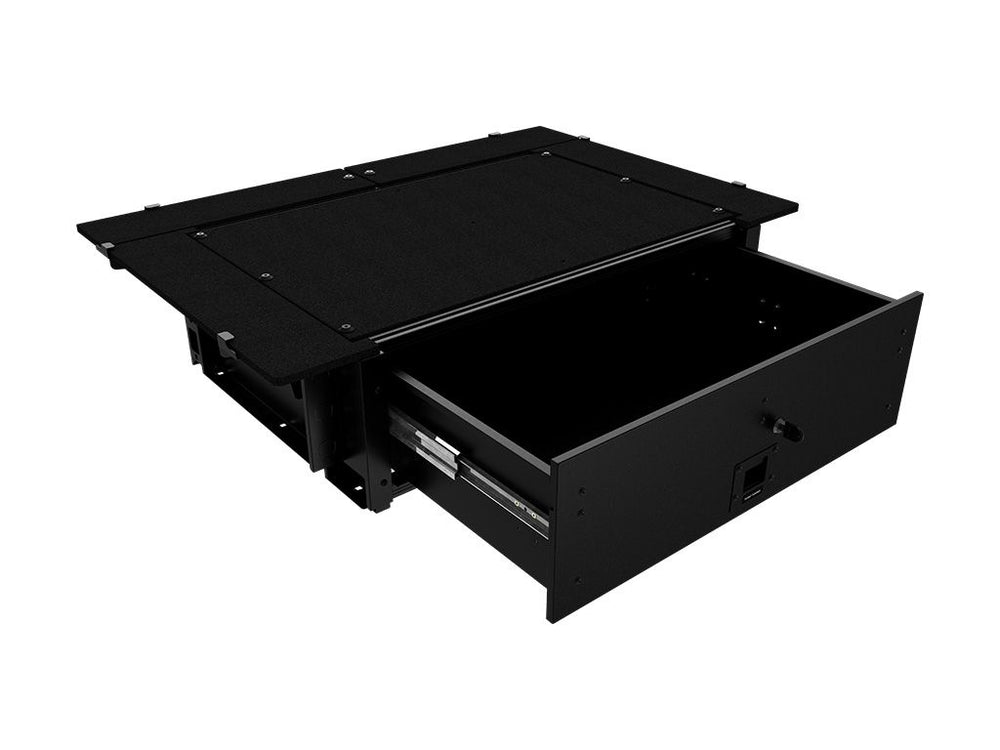

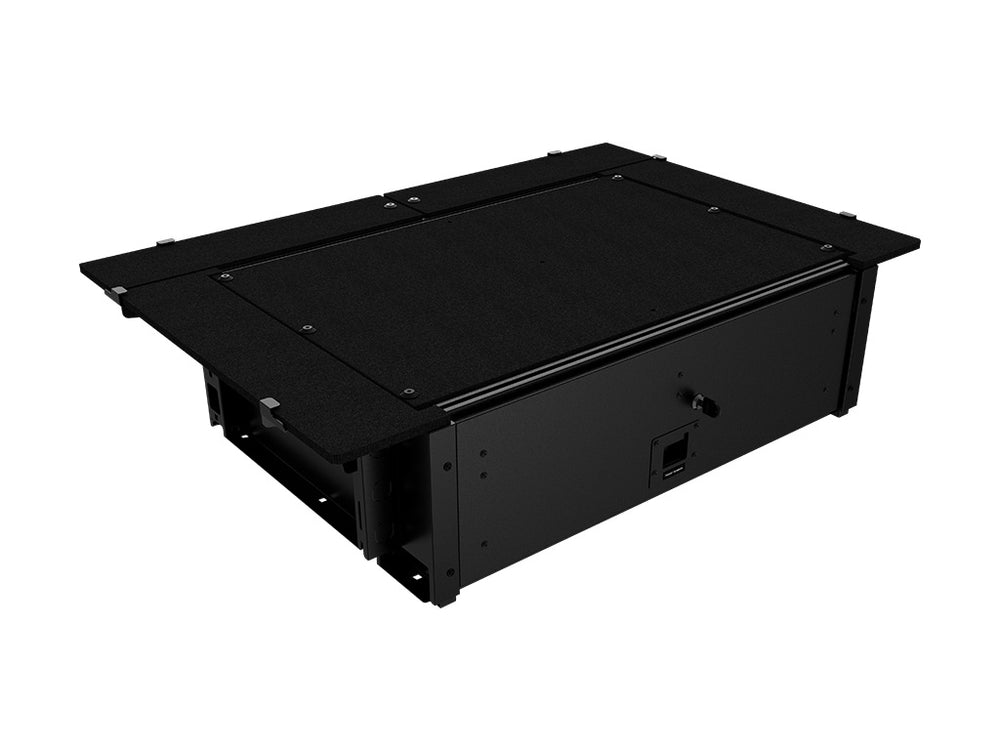

Make storing and organizing gear and valuables a no-brainer. This lockable drawer with fitted deck and faceplates have been designed specifically for the Toyota FJ Cruiser. Hide contents from prying eyes while creating more usable and easily accessible storage space in your vehicle.Engineered tough for both on and off-road travel.
This drawer kit has 1 lockable drawer, 2 keys per lock, 2 tie down rails, 4 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.
- 113kg / 250 lb drawer load carrying capacity.
- Hold open feature: drawer “locks” open while parked on uneven surfaces.
- High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base.
- Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear.
- The flat deck incorporates two cargo attachment channels and 4 Tie Down Rings / Eye Nuts For Drawer System.
- Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
- The deck above the drawers can also be used to mount Front Runner Cargo/Fridge Slides.
- The left and right-side Faceplates have 3, pre-cut, knock-outs each for adding electrical panel socket inserts (sold separately).
- The side decks and rear decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
- The deck is covered with a durable, UV resistant nylon pile black carpet detailed to complement the vehicle’s interior contours.
- The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
- Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
- This drawer kit can be easily installed in minutes by attaching the supplied carabiners and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets. Removing the drawer is just as easy.
All Front Runner Storage Systems are backed by a 2 year warranty.
Consists of:
1 x Base Drawer unit (SSDR011)
1 x Set of Side Decks (1 Left hand side & 1 Right hand side)
1 x Set of Rear Decks (1 Left hand side & 1 Right hand side)
1 x Set of Front Covers (1 Left hand side & 1 Right hand side)
1 x Custom FJ Cruiser Wing Set
1 x Push to close latch with 2 keys
2 x Accessory channels
4 x Eye Nuts for accessory channel
Installation Hardware includes 4 turnbuckles to secure the unit
Fitting Instruction
Materials used:
Aluminum - Accessory Channels & Sub Frame
Black powder coated steel - Drawer Bins, Frame & Front Covers
Carpet & Laminated plywood - Top Deck, Side & Rear Deck
Product Dimensions:
620mm (24.4") L x 830mm (32.7") W x 270mm (10.6") H
Interior Drawer Dimensions:
497mm (19.6") L x 716mm (28.2") W x 180mm (7.1") H
Weight:
32.4Kg (71.4lbs)
Load Rating:
113Kg (250lbs)
