Front Runner | Toyota Fortuner (2005-2015) Drawer Kit - SSTF004
loading..

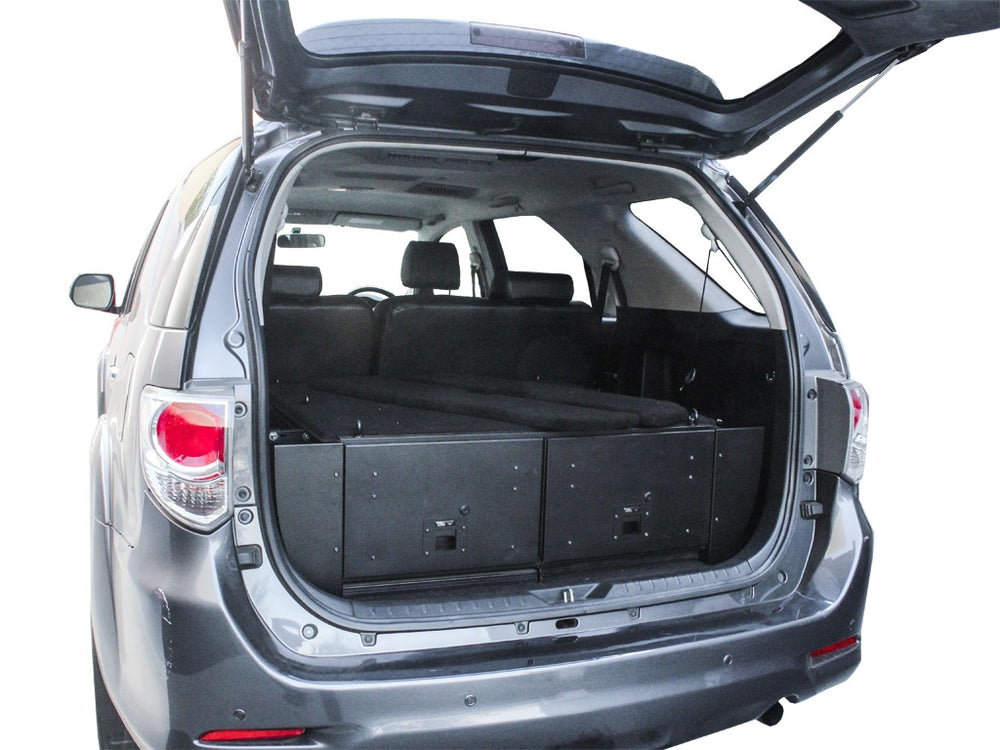

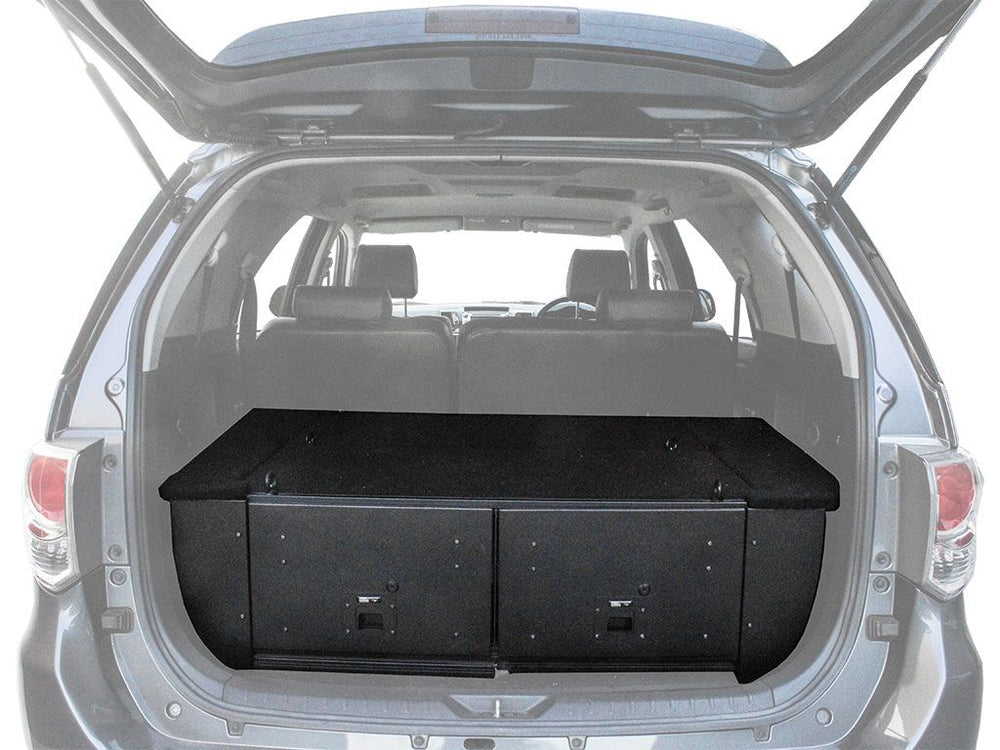

Make storing and organizing gear and valuables a no-brainer. These 2 lockable drawers with fitted deck and faceplates have been designed specifically for the Toyota Fortuner. Hide contents from prying eyes while creating more usable and easily accessible storage space in your vehicle.Engineered tough for both on and off-road travel.

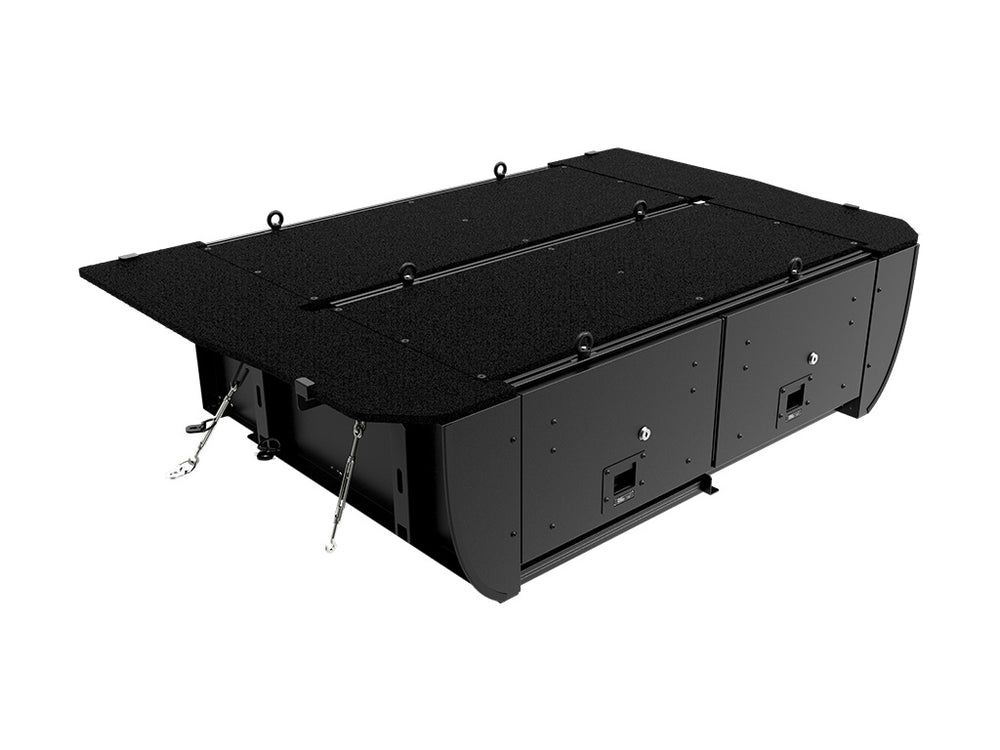

This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.
All Front Runner Storage Systems are backed by a 2 year warranty.
*Please Note: Drawer Dividers and Cub Packs are not included when purchasing this Drawer System and are sold separately.
Consists of:
1 x Drawer base unit (SSDR005)
1 x Toyota Fortuner Deck Completion set
2 x Push to close latch with 2 keys per lock
3 X Accessory channels
6 x Eye Nuts for accessory channels
Installation Hardware
Fitting Instruction
Materials used:
Aluminum - Accessory Channels & Sub Frame
Black powder coated steel - Drawer Bins & Frame

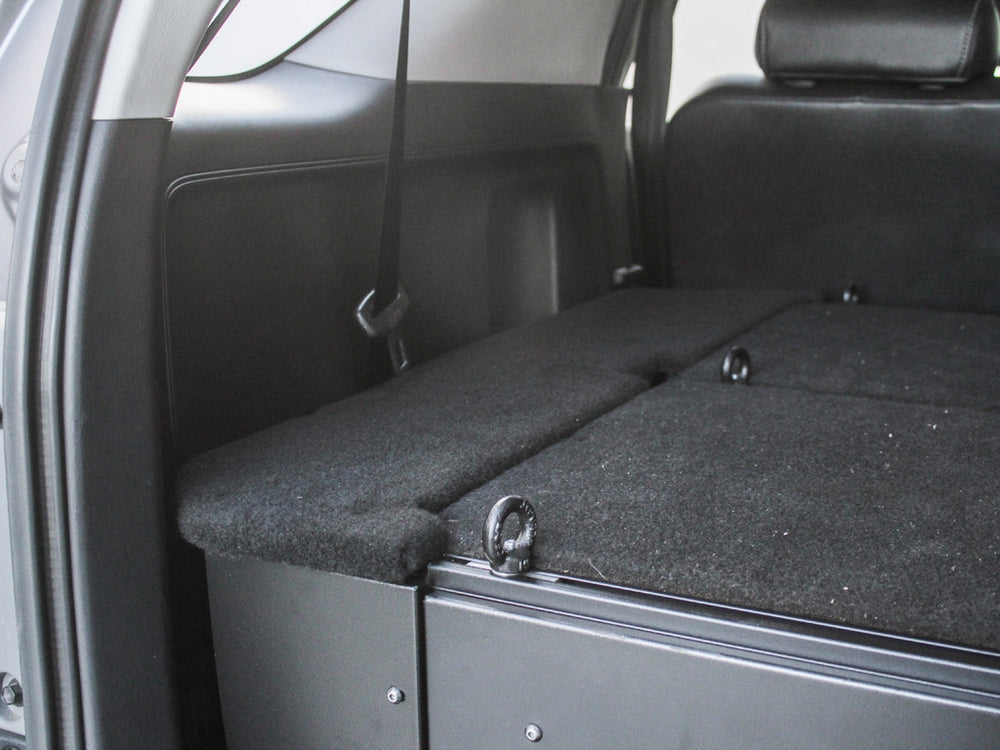

Carpet & Laminated plywood - Top Deck & Deck Set
Product Dimensions:
Overall Dimensions:
881mm (34.7") L x 1344mm (52.9") W x 336mm (13.2") H
Internal Drawer Dimensions:
Left Hand Side:
817mm (32.2") L x 386mm (15.2") W x 213mm (8.4") H
Right Hand Side:
817mm (32.2") L x 386mm (15.2") W x 213mm (8.4") H
Weight:
66.7kg (147lbs)
Load Rating:
113Kg (250lbs) per Drawer
Special Notes:
4 Drawer Dividers (SSCA050) can fit each Drawer
