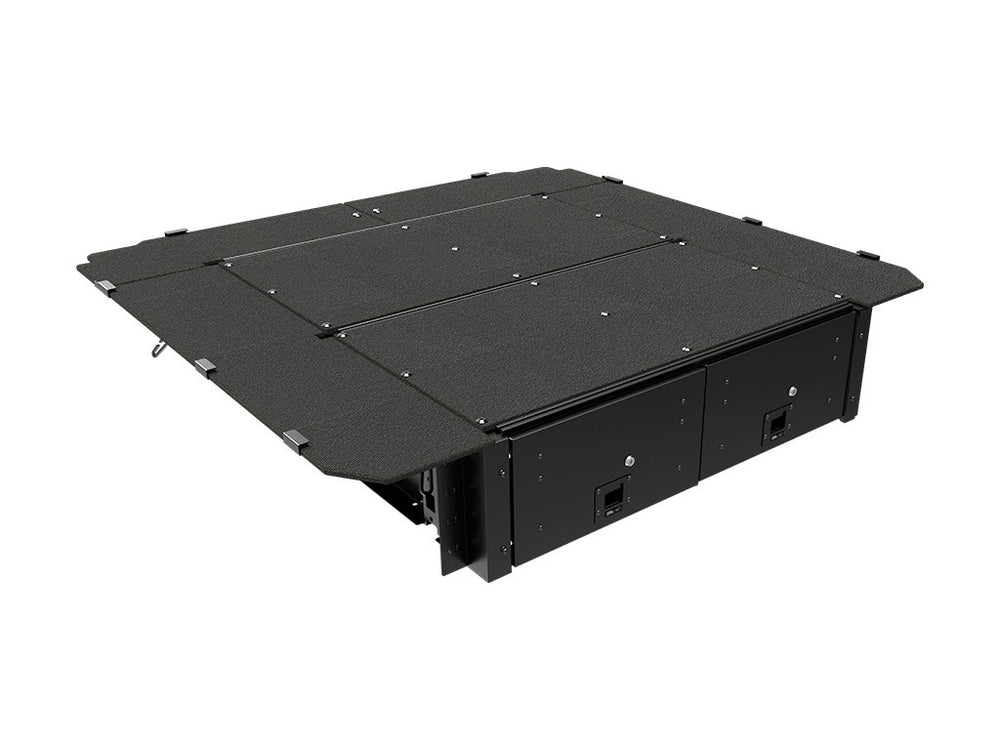

Make storing and organizing gear and valuables a no-brainer. These 2 lockable drawers with fitted deck and faceplates have been designed specifically for the Toyota Hilux Revo. Hide contents from prying eyes while creating more usable and easily accessible storage space in your vehicle.Engineered tough for both on and off-road travel.
This drawer kit has 2 lockable drawers, 2 keys per lock, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.
- 113kg / 250 lb per drawer load carrying capacity.

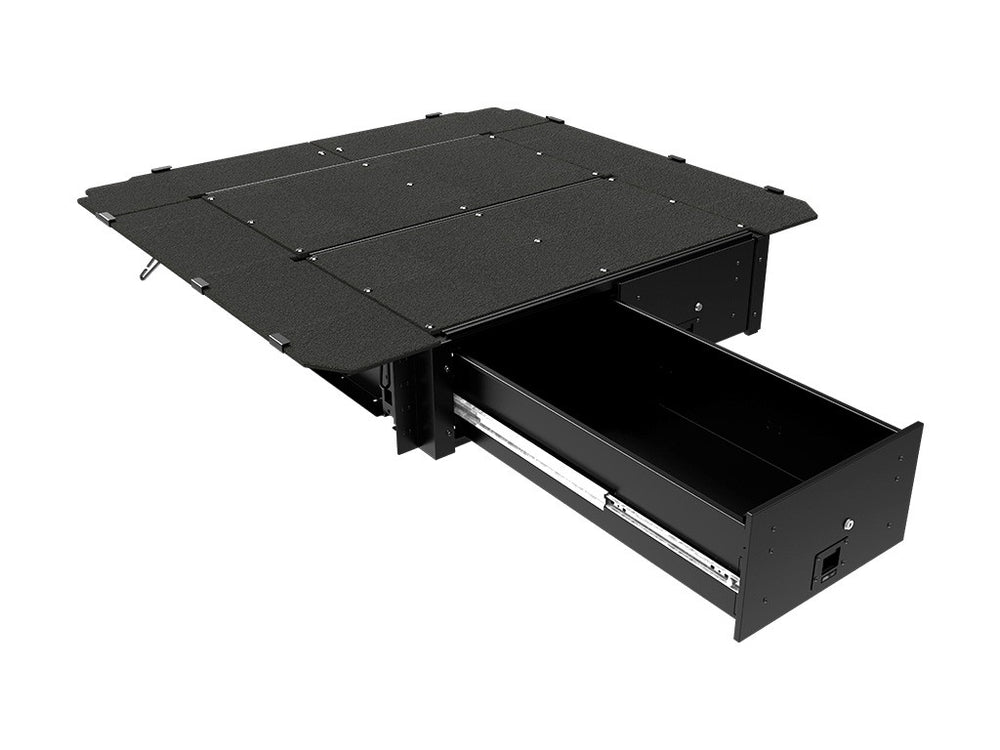

- High-strength bearing slides allows each drawer to extend nearly 100% from the anchored base.
- This drawer kit can be easily installed in minutes by attaching the supplied carabiners and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets. Removing the drawers is just as easy.
- Provide peace of mind and security by locking away important travel items such as computers, smart phones and camera gear.
- The flat deck incorporates three cargo attachment channels and 6 Tie Down Rings / Eye Nuts For Drawer System.
- Customize your own storage configurations. Stack and secure luggage, Wolf Pack, Cub Pack, aluminum boxes and other storage containers to the top deck using Stratchits or other straps.
- The deck above the drawers can also be used to mount Front Runner Cargo / Fridge Slides.
- The left side Faceplate has 4 pre-cut knock-outs for adding electrical panel socket inserts. The right side faceplate has 2 pre-cut knock-outs for water fittings such as the Stainless Steel Water Tank for Pickup Drawer System / 52l (sold separately).
- The side decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
- To create compartments within the drawers, add the optional steel Drawer Dividers. Drawer Dividers help organize and stop excessive movement of gear and supplies. Sold in pairs, these drawers can accommodate up to 4 dividers per drawer.
- To create a removable box option, use Cub Pack or Flat Pack inside the drawers. The Cub Pack or Flat Pack can be used to further organize and easily move gear in and out of a vehicle.
- The deck is covered with a durable, UV resistant nylon pile black carpet.
- The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
- Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.

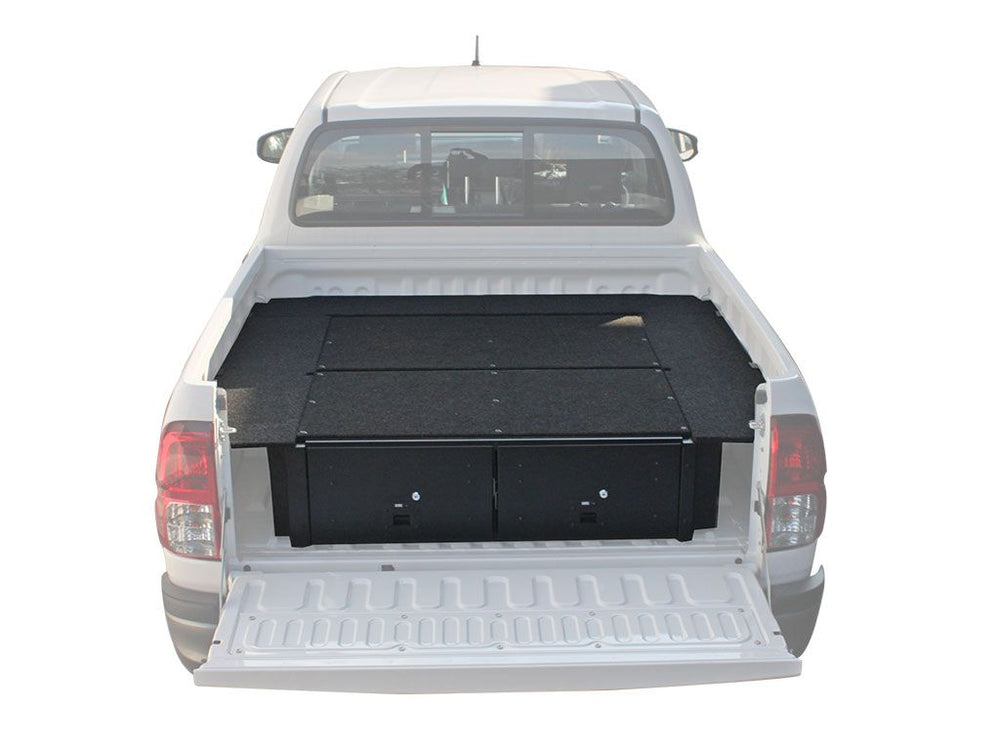

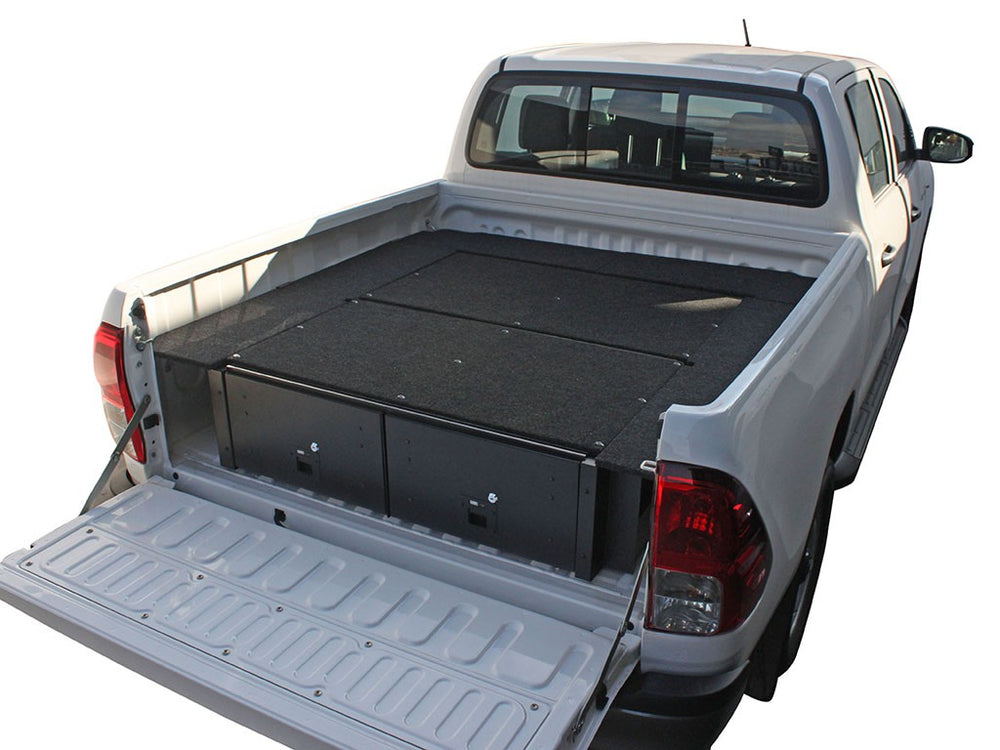

- This storage system is designed for interior use with a canopy, camper shell, or other style bed / load bed cover.
All Front Runner Storage Systems are backed by a 2 year warranty.
*Please Note: Cub Packs and Flatpack Storage Boxes are not included when purchasing this Drawer System and are sold separately.
Note: The Deck Completion Set for this drawer kit requires modification when installed with an existing plastic load liner.
Consists of:
1 x Drawer Base Unit (SSDR010)
1 x Drawer System Wing Set (SSWS001)
1 x Toyota Hilux Revo Deck Completion Set (SSDS109)
2 x Push to close latch with 2 keys per lock
3 x Accessory channels
6 x Eye Nuts for accessory channels
Installation Hardware includes 4 turnbuckles to secure the unit
Fitting Instructions
Materials used:
Aluminum - Accessory Channels & Sub Frame
Black powder coated steel - Drawer Bins & Frame
Carpet & Laminated plywood - Top Deck & Deck Set
Product Dimensions:
Overall Closed Product Dimensions:
1493mm (58.8") L x 1598mm (62.9") W x 292mm (11.5") H
Overall Open Product Dimensions:
2508mm (98.4") L x 1598mm (62.9") W x 292mm (11.5") H
Internal Single Drawer Dimensions: (Equal Sized Drawers)
1156mm (45.5") L x 445mm (17.5") W x 208mm (8.2") H
Weight:
104.45kg (230.3lbs)
Load Rating:
113Kg (250lbs) per Drawer
