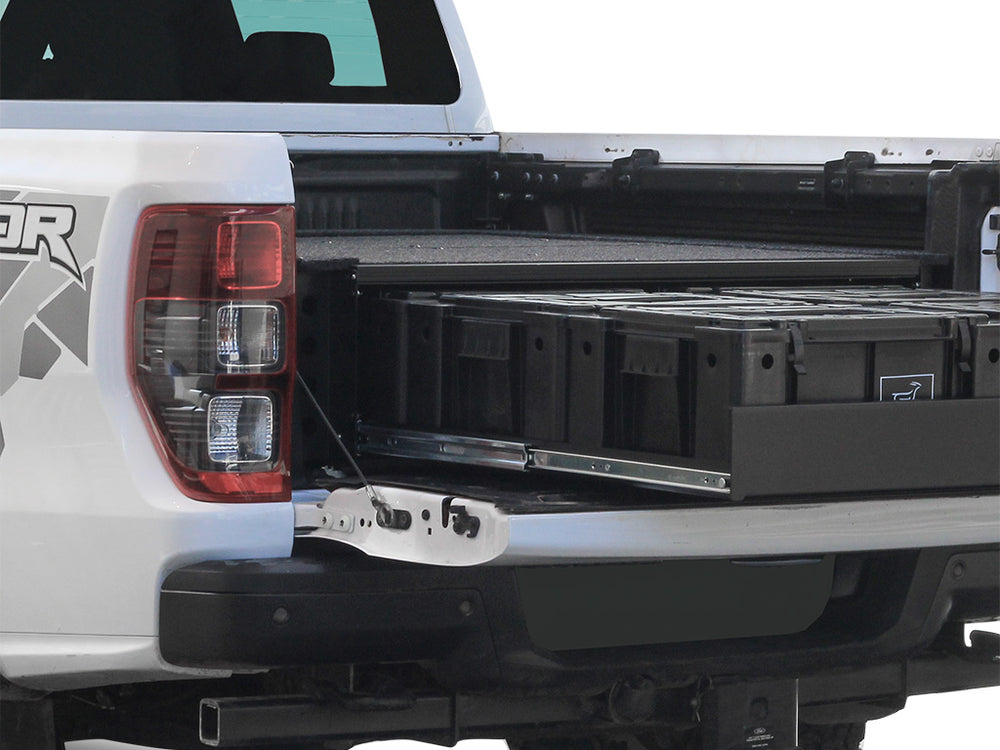

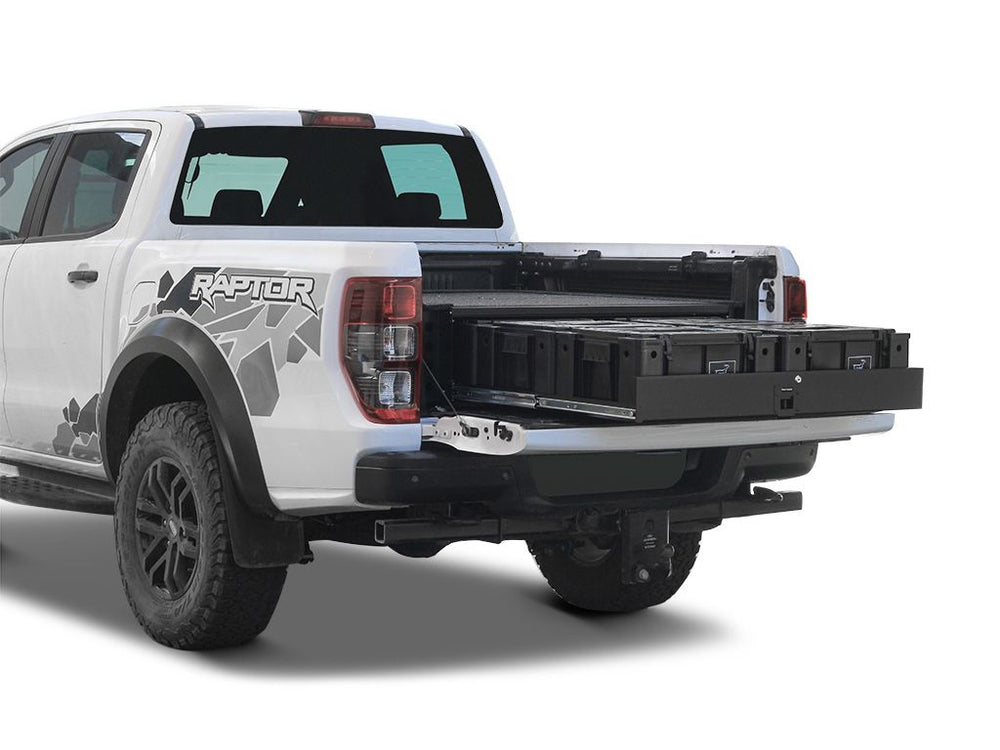

Storing, organizing and moving gear in a Ford Ranger Raptor equipped with a drop-in bed liner just got easier. This lockable drawer system provides a comprehensive and practical vehicle-based storage solution. The drawer system uses our popular Wolf Pack storage boxes to simplify organizing and transporting stored items. The kit is engineered tough for both on and off-road conditions.
- Drawer kit includes: one (1) drawer slide, six (6) Front Runner Wolf Packs, set of locks and keys, three (3) tie down rails, six (6) tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed installation instructions.
- Load-carrying capacity: 113kg/250lb per drawer
- Clip-closure, stackable and durable Wolf Pack storage boxes are made from black, high-strength plastic, and have integrated grips for easy carrying.
- Easily install or remove the drawer in minutes by attaching the supplied C-hooks and turnbuckles to the vehicle’s existing mounting points and the drawer mounting brackets.
- High-strength bearing slides allow the drawer to extend nearly 100% from the anchored base.
- Stack and store luggage on or inside the drawers in your own custom configuration with Front Runner’s storage solutions and boxes (sold separately).
- The deck above the drawers can also be used to mount Front Runner Cargo/Fridge Slides.
- Drawer “locks” open while parked on uneven surfaces.

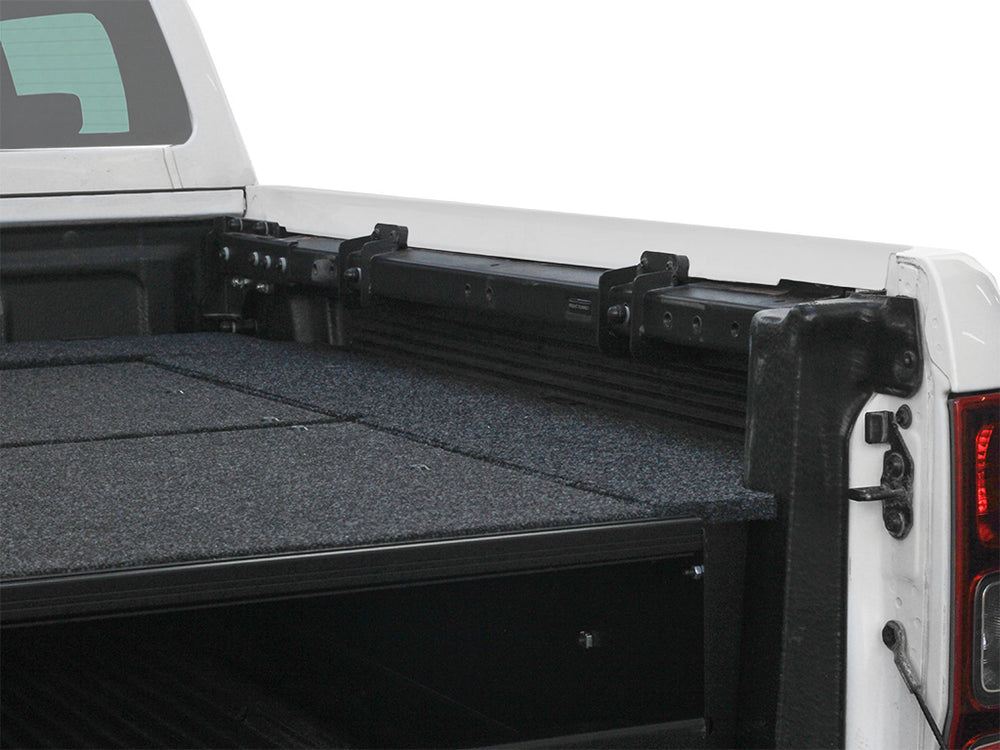

- The deck is covered with a durable, UV-resistant nylon pile black carpet to create resiliency for securing cargo while insulating against noise and vibration.

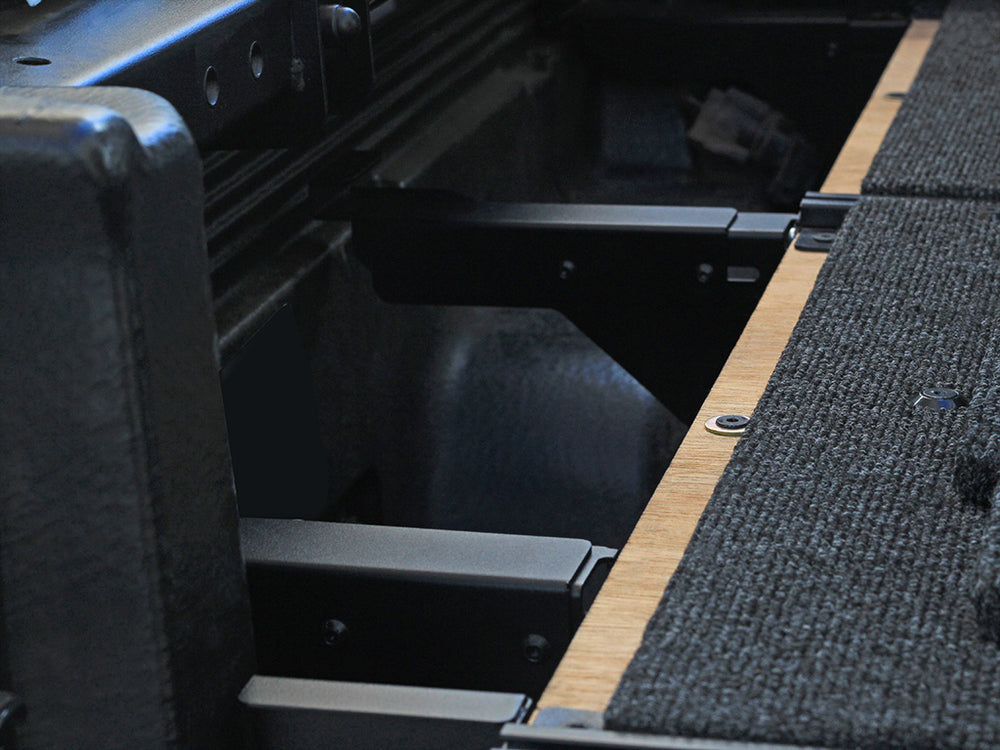

- Side decks are easily removable to create storage space between the drawers and vehicle for a variety of items such as jumper cables, tow ropes, kindling and more.

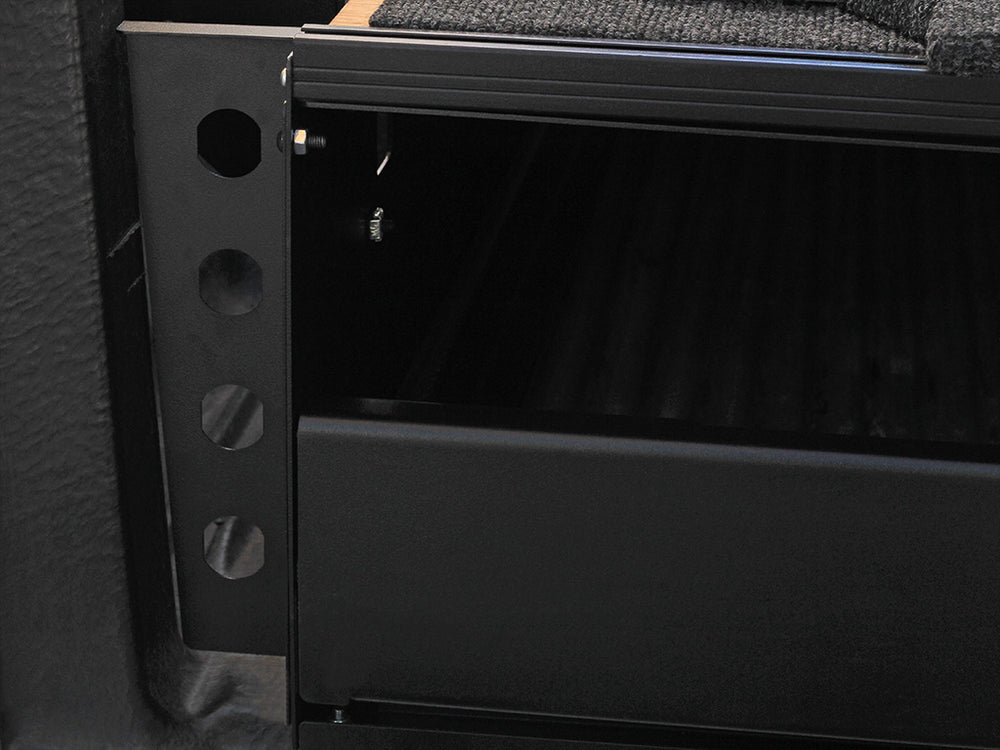

- Each faceplate has pre-cut knockouts for additions like electrical panel socket inserts or water fittings (sold separately).
- Finished with the same durable black powder coating as Front Runner Roof Racks and other Front Runner products.
- Designed for interior use with a canopy, camper shell, or other style bed/load bed cover.
- All Front Runner storage systems are backed by a two-year warranty.
Consists of:
1 x Base Drawer unit (SSWO008)
1 x Ford Raptor w/Drop-In Liner Deck set
1 x Drawer system Wing set
1 x Push to close latch with 2 keys
3 x Accessory channels
6 x Eye Nuts for accessory channels
Installation Hardware
Fitting Instruction
Materials used:
Aluminum - Accessory Channels & Sub Frame
Black powder coated steel - Frame
Carpet & Laminated plywood - Top Deck & Deck Set
Product Dimensions:
1456mm (57.7") L x 1548mm (60.9") W x 312mm (12.3") H
Inner Drawer Dimensions:
1197mm (47.1") L x 1031mm (40.6") W x 230mm (9.1") H
Open Drawer Dimensions:
2163mm (85.2") L x 1083mm (42.6") W x 310mm (12.2") H
Weight:
80.7kg (177.9lbs)
Load Rating:
113Kg (250lbs) per Drawer
